Specifications

Product Type Miniature Circuit Breaker	Brand ABB	Series S 200 M UC
Application DC and AC applications

No. of Poles (Total) 1	Rated Impulse Withstand Voltage (Uimp) 4 kV	Rated Insulation Voltage (Ui) 253 V AC (phase to ground), 440 V AC (phase to phase)
Power Loss 1.8 W	Rated Current (In) 6 A	Rated Frequency 0/50/60 Hz
Rated Voltage (Ur) 230 V AC	Trip Curve K	Terminal Type Screw Terminals (Failsafe bi-directional cylinder-lift terminal)
Electrical Life 20000 AC cycle	Mechanical Life 20000 cycles

Conductor Cross Section Flexible

25 mm2

Conductor Cross Section Solid Core

35 mm2

Housing Material

Insulation group I, RAL 7035

Depth 69 mm	Height 85 mm	Weight 125 g
Width 17.5 mm	Width in No. of Modular Spacing 1	Pole Width 17.5 mm

Rated Surrounding Temperature Without Derating 20 °C	Pollution Degree 2	Storage Temperature -40 to 70 degC
Operating Temperature -25 to 55 degC	IP Rating IP20, IP40 in enclosure with cover

Standards and Approvals

IEC/EN 60898-2, IEC/EN 60947-2, UL 1077, CSA 22.2 No. 235

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. to AS/NZS 60947-2 at 230 VAC

10 kA

Rated Ultimate Short- Circuit Breaking Capacity (Icu), acc. to AS/NZS 60947-2 at 400 VAC

10 kA

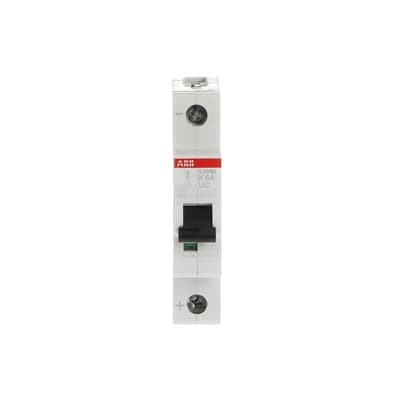

ABB S201MK6UC Miniature Circuit Breaker 10 kA at 230VAC 1-P 6A 230/240VAC K-Curve
