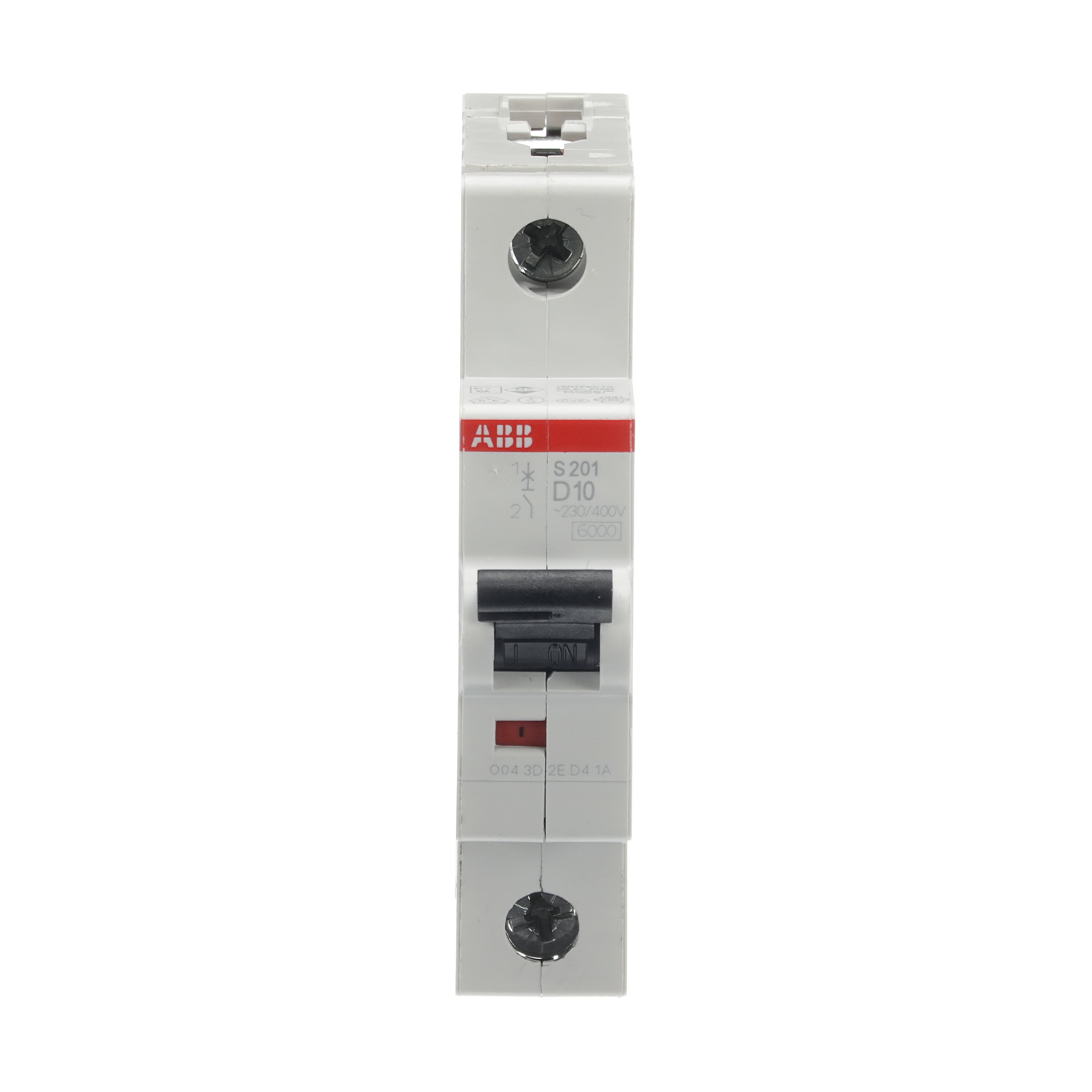

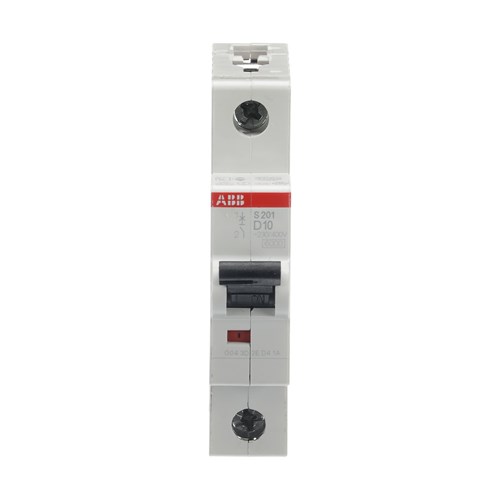

ABB S201D10 Miniature Circuit Breaker 6 kA at 230VAC 1-P 10A 230/400VAC D-Curve

Product Code: S201D10

  • Rated current of 10 A
  • Breaking capacity of 6kA at 230 VAC
  • Complies with IEC/EN and UL standards
  • Designed for DIN rail mounting
  • Electrical durability up to 20000 cycles
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Miniature Circuit Breaker
Brand
ABB
Series
S200
Application
Residential, commercial and industrial applications

Electrical

No. of Poles (Total)
1
Rated Impulse Withstand Voltage (Uimp)
4 kV
Rated Insulation Voltage (Ui)
440 V
Power Loss
1.6 W
Rated Current (In)
10 A
Rated Frequency
50/60 Hz
Rated Voltage (Ur)
230 V AC
Trip Curve
D
Terminal Type
Screw Terminals
Electrical Life
20000 cycles
Mechanical Life
20000 cycles

Mechanical

Conductor Cross Section Flexible
0.75 to 25 mm2
Conductor Cross Section Solid Core
0.75 to 35 mm2
Housing Material
Insulation group II, RAL 7035

Dimensions & Physical Data

Depth
69 mm
Height
88 mm
Weight
112 g
Width
17.5 mm
Width in No. of Modular Spacing
1
Pole Width
17.5 mm

Environmental

Rated Surrounding Temperature Without Derating
30 degC
Pollution Degree
3
Storage Temperature
-40 to 70 degC
Operating Temperature
-25 to 55 degC
IP Rating
IP20 IP40 Enclosure with Cover IP40

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
