Specifications

Product Type Miniature Circuit Breaker	Brand ABB	Series S200 80-100 A
Application Residential, commercial and industrial applications

No. of Poles (Total) 1	Rated Impulse Withstand Voltage (Uimp) 4kV	Rated Insulation Voltage (Ui) 440V
Power Loss 9.8W	Rated Current (In) 100A	Rated Frequency 50/60Hz
Rated Voltage (Ur) acc. to IEC 60898-1 230/400 V AC, acc. to IEC 60947-2 230 V AC	Trip Curve C	Terminal Type Screw Terminals
Electrical Life 10000 cycles	Mechanical Life 20000 cycles

Conductor Cross Section Flexible

4mm² to 35mm²

Conductor Cross Section Solid Core

2.5mm² to 50mm²

Housing Material

Insulation group II, RAL 7035

Depth 69mm	Height 85mm	Weight 0.12kg
Width 17.5mm	Width in No. of Modular Spacing 1	Pole Width 17.5mm

Rated Surrounding Temperature Without Derating 30°C	Pollution Degree 3	Storage Temperature -40°C to 70°C
Operating Temperature -25°C to 55°C	IP Rating IP20 IP40 Enclosure with Cover IP40

Standards and Approvals

IEC/EN 60898-1, IEC/EN 60947-2

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. to AS/NZS 60947-2 at 230 VAC

50kA

Rated Ultimate Short- Circuit Breaking Capacity (Icu), acc. to AS/NZS 60947-2 at 400 VAC

50kA

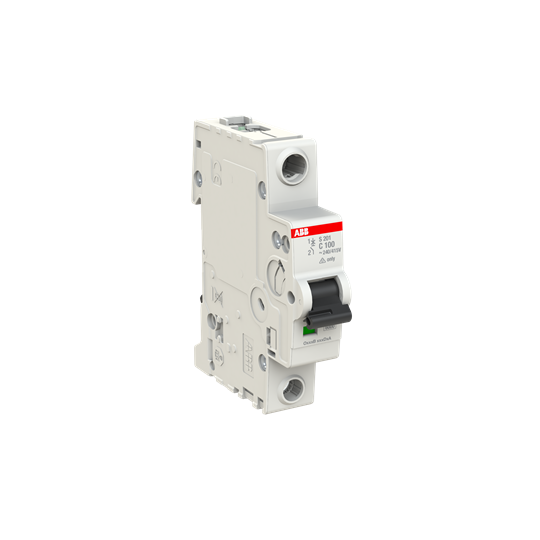

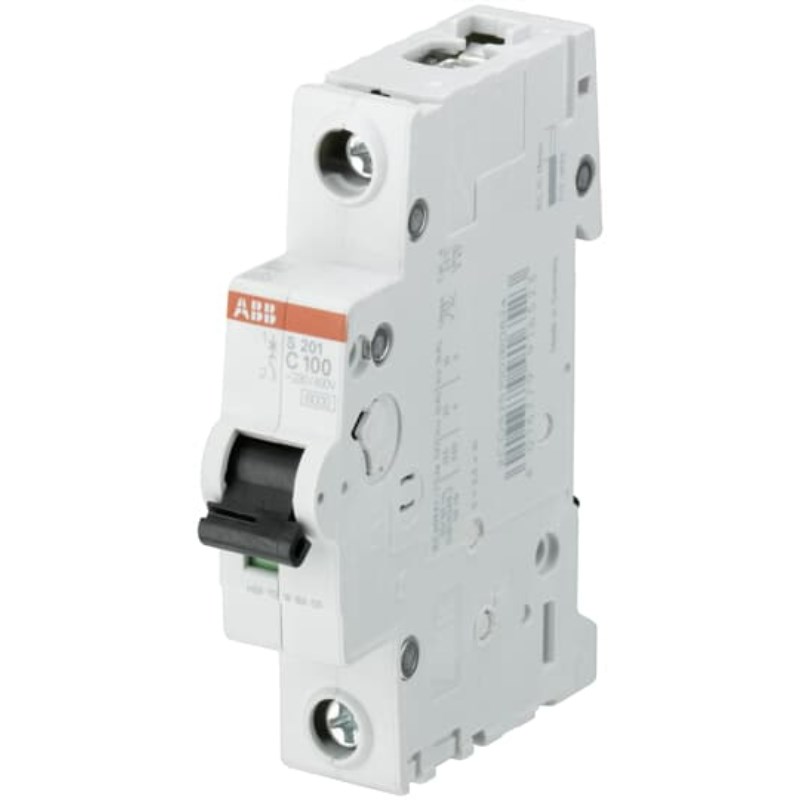

ABB S201C100 Miniature Circuit Breaker 6 kA at 230VAC 1-P 100A 230/400VAC C-Curve
