Specifications

Product Type Miniature Circuit Breaker	Brand ABB	Series S200
Application Residential, commercial and industrial applications

No. of Poles (Total) 1	Rated Impulse Withstand Voltage (Uimp) 4 kV	Rated Insulation Voltage (Ui) 440 V
Power Loss 2.1 W	Rated Current (In) 10 A	Rated Frequency 50/60 Hz
Rated Voltage (Ur) 230 V AC	Trip Curve C	Terminal Type Screw Terminals
Electrical Life 20000 cycles	Mechanical Life 20000 cycles

Conductor Cross Section Flexible

0.75 to 25 mm2

Conductor Cross Section Solid Core

0.75 to 35 mm2

Housing Material

Insulation group II, RAL 7035

Depth 69 mm	Height 88 mm	Weight 112 g
Width 17.5 mm	Width in No. of Modular Spacing 1	Pole Width 17.5 mm

Rated Surrounding Temperature Without Derating 30 degC	Pollution Degree 3	Storage Temperature -40 to 70 degC
Operating Temperature -25 to 55 degC	IP Rating IP20 IP40 Enclosure with Cover IP40

Standards and Approvals

IEC/EN 60898-1, IEC/EN 60947-2, UL 1077

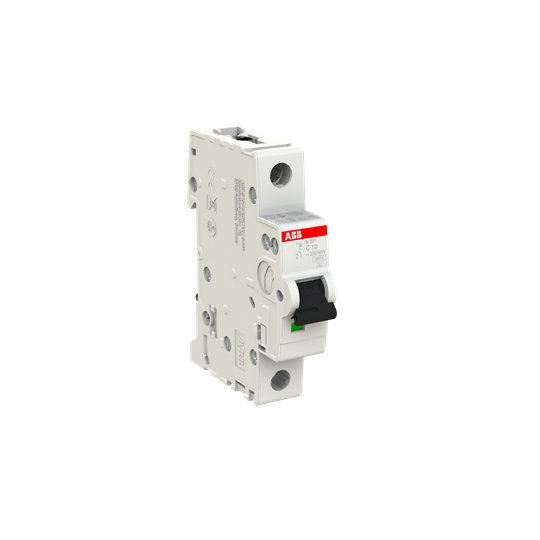

ABB S201C10 Miniature Circuit Breaker 6 kA at 230VAC 1-P 10A 230/400VAC C-Curve
