Specifications

Product Type

Residual Current Relay

Brand

ABB

Series

RD2

No. of Auxiliary Contacts CO (SPDT) 1	Rated Control Supply Voltage (Us) 48V to 150V AC/DC	Rated Operational Voltage (Ue) 48V to 150V AC/DC
Power Loss 3.4W	Rated Frequency 50Hz to 60Hz	Residual Current Type Type A
Rated Residual Current 30; 100; 300; 500; 1000; 2000mA	Trip Time Fast (0.05 s); 0.3 s; 0.5 s; 1 s; 2 s; 5 s

Depth 65mm	Height 85mm	Weight 0.105kg
Width 35mm	Width in No. of Modular Spacing 2

Operating Temperature

-5°C to 40°C

IP Rating

IP20

Standards and Approvals

IEC/EN 62020

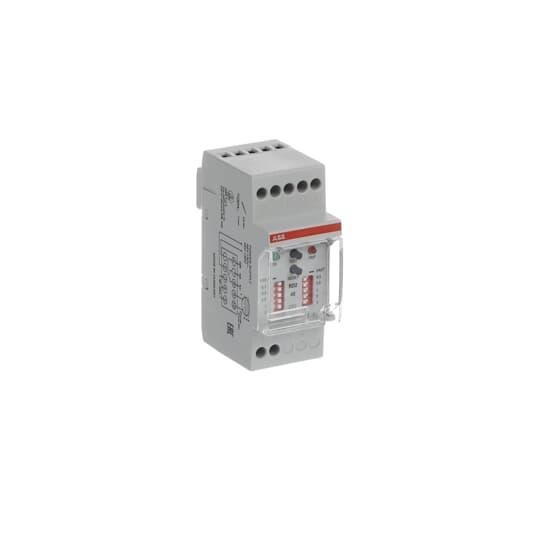

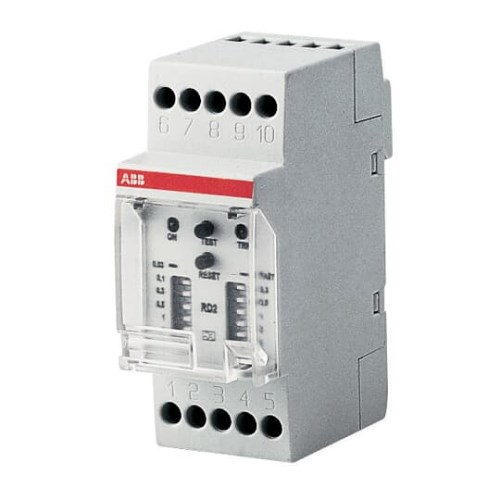

ABB RD2-48 Residual Current Monitor TypeA DIN Rail Mount
