Specifications

Product Type

Residual Current Circuit Breakers With Overcurrent Protection RCBO

Brand

ABB

Series

DSE201 M

No. of Poles (Total) 1P+N	Rated Impulse Withstand Voltage (Uimp) 4kV	Rated Insulation Voltage (Ui) 500V
Power Loss 4.4W	Rated Current (In) 32A	Rated Frequency 50/60Hz
Rated Voltage (Ur) 230/240V AC	Trip Curve C	Terminal Type Screw Terminals
Residual Current Type Type A	Rated Residual Current 10mA	Switching Neutral No
Electrical Life 10000 cycle	Mechanical Life 20000 cycle

Conductor Cross Section Flexible

1mm² to 16mm²

Conductor Cross Section Solid Core

1mm² to 35mm²

Housing Type

Insulation group II, RAL 7035

Depth 69mm	Height 115mm	Weight 0.2kg
Width 18mm	Width in No. of Modular Spacing 1

Rated Surrounding Temperature Without Derating 30°C	Pollution Degree 2	Storage Temperature -40°C to 70°C
Operating Temperature -25°C to 55°C	IP Rating Terminals IP20; Housing IP40

Standards and Approvals

IEC 61009-1; IEC 61009-2-2; AS/NZS 61009.1; BS EN 61009-1

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. To IEC/AS/NZS 61009

15kA

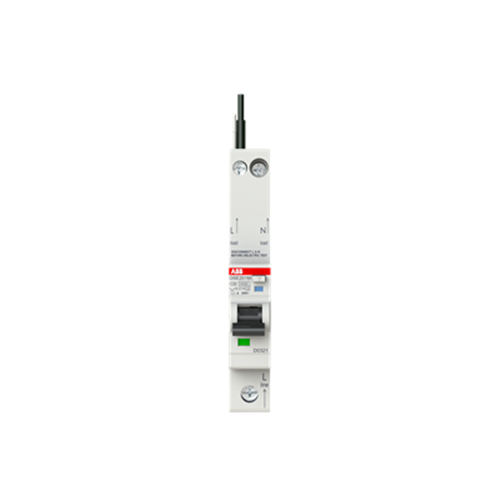

ABB RCBO 10 kA 1P+N 32A 30mA TYPE A C CURVE 1 MODULE LONG BODY DSE201MC32A10
