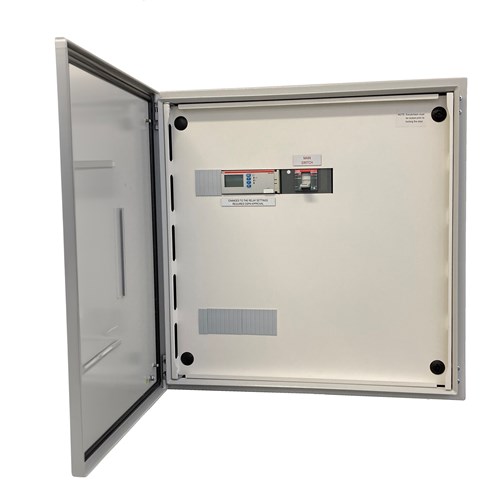

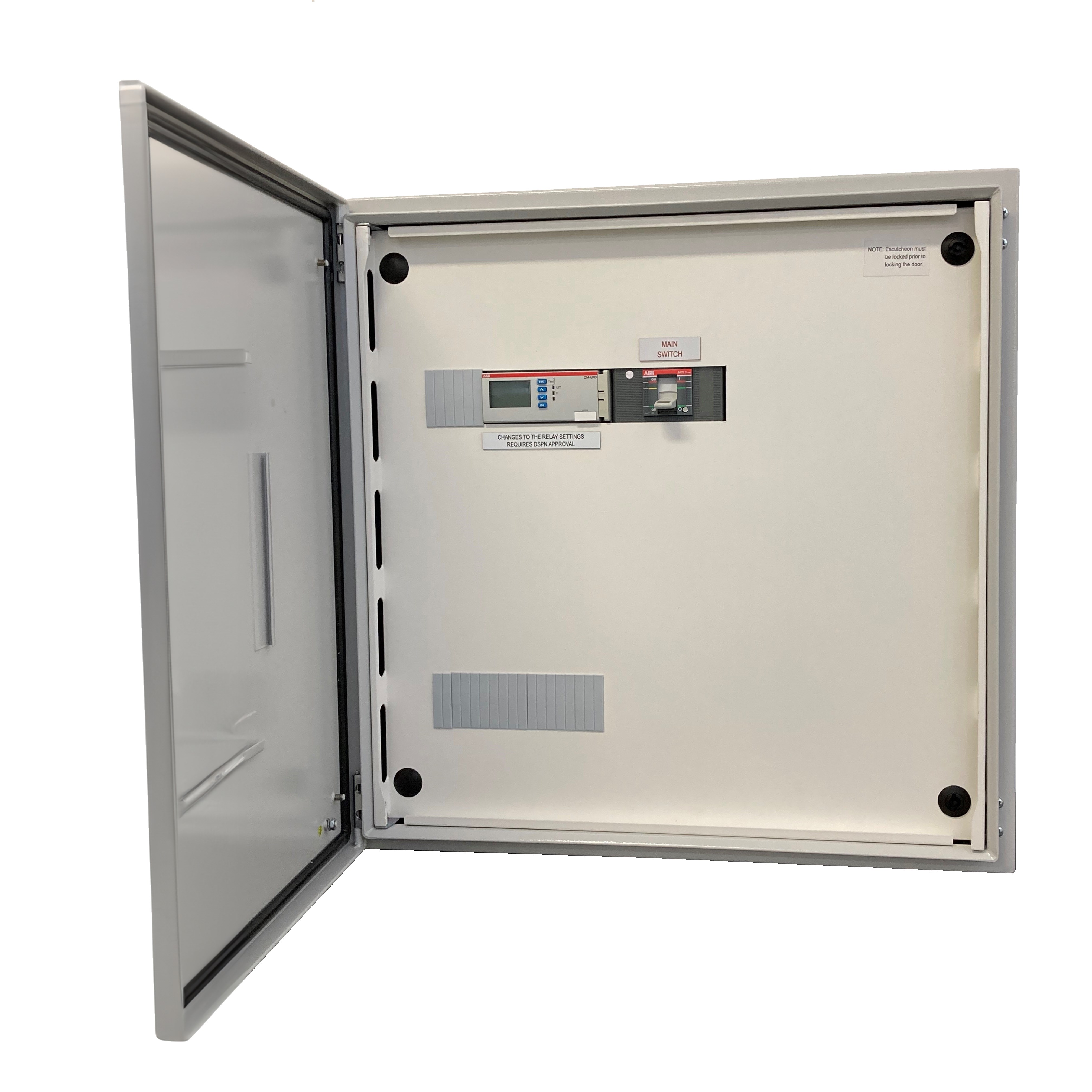

ABB PVGRID110ECO Protection Cubicle 230/400VAC 160 A 110 kVA IP65

Product Code: PVGRID110ECO

  • Suitable for 160 A rated current
  • Handles up to 110 kVA power
  • Operates at 230/400 VAC voltage
  • IP65-rated for dust and water protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Protection cubicle
Brand
IPD
Series
PVGRID ECO
Application
Economy photovoltaic grid/interface protection using an ABB CM-UFD.M33 relay

Electrical

Current Rating
160 A
Inputs (Strings)
PV inverter / generation AC
kVA Rating
110 kVA
Output (Feeds)
Utility grid / main switchboard

Mechanical

Enclosure Material
Powder-coated mild steel

Dimensions & Physical Data

Depth
200 mm
Height
600 mm
Width
600 mm

Environmental

IP Rating
IP65

Documents

IPD Product Catalogue V17
