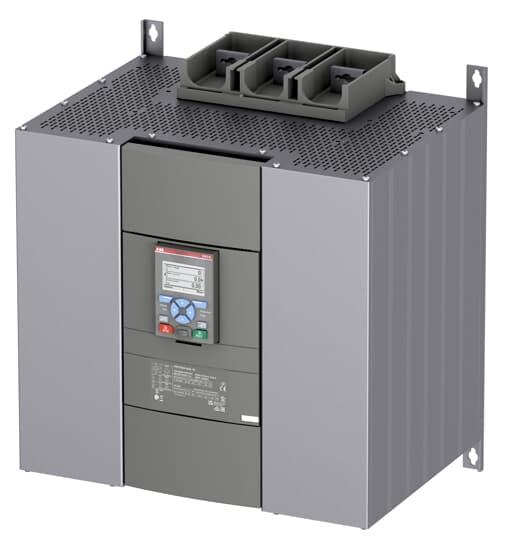

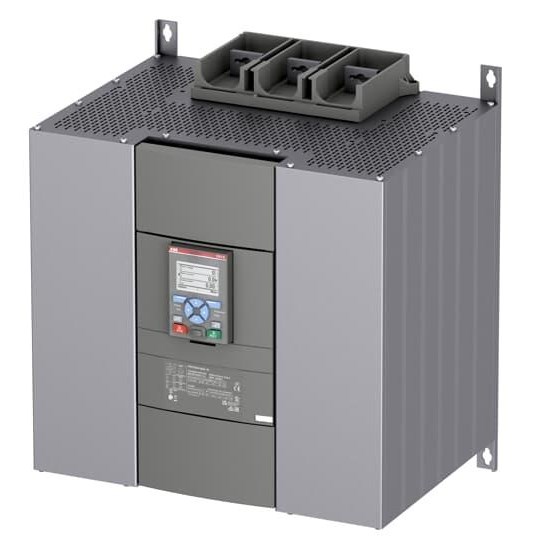

ABB PSTX840-600-70 Softstarter 840A 208-600VAC IP00

Product Code: PSTX840-600-70

  • Rated Voltage: 208-600 VAC, Current: 840 A
  • Supports multiple communication protocols
  • Soft Start/Stop with Torque & Voltage Control
  • Operational Temp: -25 to 60°C, IP00 Protection
  • Compact size: W435 x H493 x D369 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/250 VAC
Rated Current Ie - Heavy Duty
720 A
Rated Current Ie - Normal Duty
840 A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Heavy Duty
400 kW
Rated Power at 400V (Pe) - Normal Duty
450 kW
Built-in Communication
Modbus RTU
Control Features
Voltage Ramp, Torque Control, Kick Start
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
369 mm
Height
493 mm
Weight
46.5 kg
Width
435 mm

Environmental

IP Rating
IP00
Ambient Temperature
-25 to +60 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14
