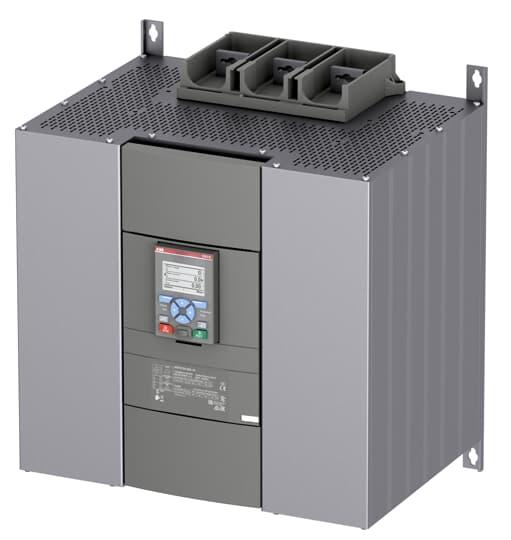

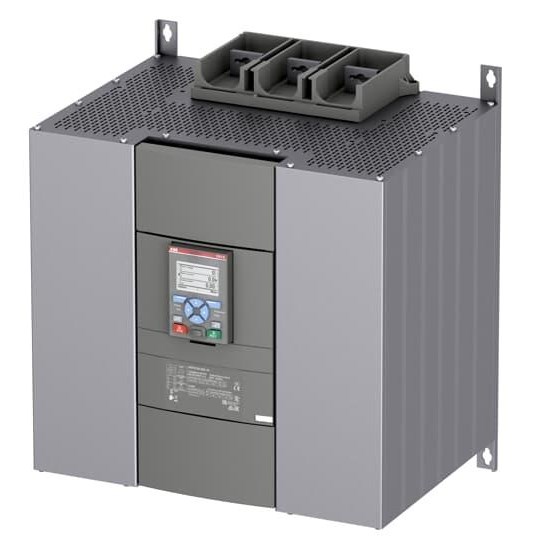

ABB PSTX720-600-70 Softstarter 720A 208-600VAC IP00

Product Code: PSTX720-600-70

  • Supports 208-600 VAC, 50/60 Hz
  • Handles up to 720 A current
  • Modbus, EtherNet/IP comms options
  • Soft start/stop with torque control
  • IP00 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/250 VAC
Rated Current Ie - Heavy Duty
570A
Rated Current Ie - Normal Duty
720A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Heavy Duty
315kW
Rated Power at 400V (Pe) - Normal Duty
400kW
Built-in Communication
Modbus RTU
Control Features
Voltage Ramp, Torque Control, Kick Start
Rated Frequency
50/60Hz

Dimensions & Physical Data

Depth
369mm
Height
493mm
Weight
46.5kg
Width
435mm

Environmental

IP Rating
IP00
Ambient Temperature
-25°C to 60°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14

Documents

IPD Product Catalogue V17
