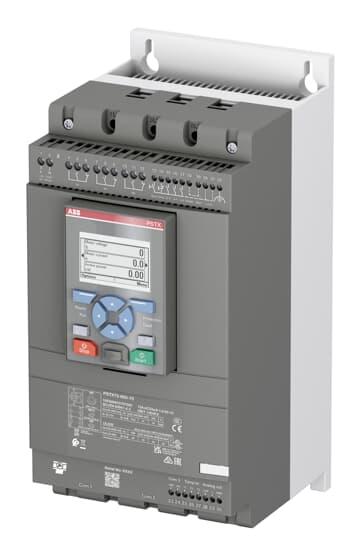

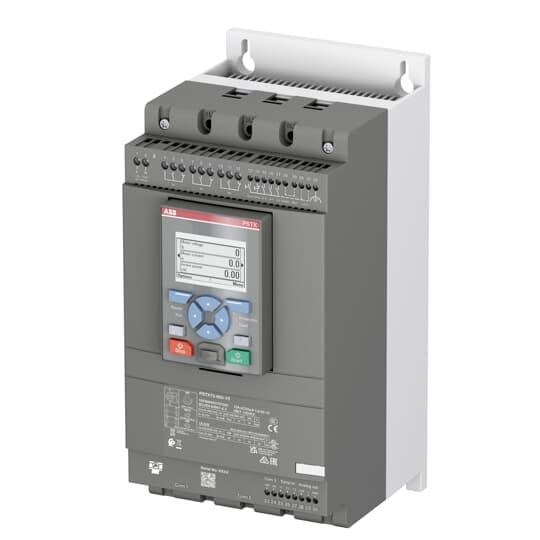

ABB PSTX72-600-70 Softstarter 72A 208-600VAC IP00

Product Code: PSTX72-600-70

  • Supports wide voltage range: 208-600 VAC
  • Extensive comms options incl. Modbus, EtherNet/IP
  • Soft start/stop with torque & voltage control
  • Handles up to 60 hp and 72 A current
  • Compact design: 150 mm width, IP00 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/250 VAC
Rated Current Ie - Heavy Duty
60A
Rated Current Ie - Normal Duty
72A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Heavy Duty
30kW
Rated Power at 400V (Pe) - Normal Duty
37kW
Built-in Communication
Modbus RTU
Control Features
Voltage Ramp, Torque Control, Kick Start
Rated Frequency
50/60Hz

Dimensions & Physical Data

Depth
198mm
Height
314mm
Weight
4.7kg
Width
150mm

Environmental

IP Rating
IP00
Ambient Temperature
-25°C to 60°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14
