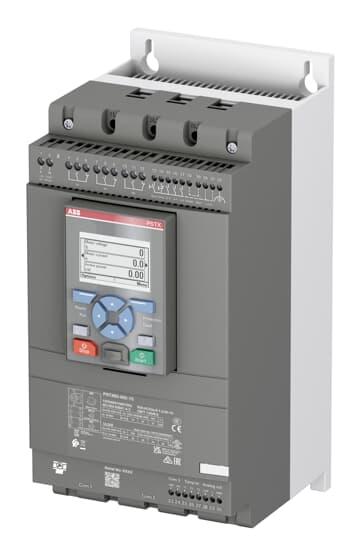

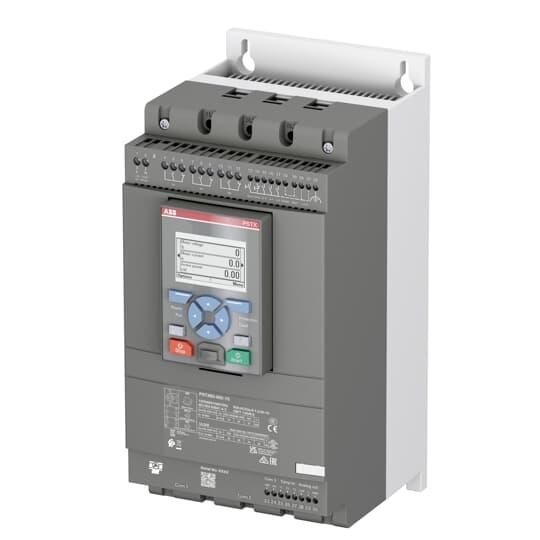

ABB PSTX60-600-70 Softstarter 60A 208-600VAC IP00

Product Code: PSTX60-600-70

  • Supports 208-600 VAC and 60 A current
  • Compatible with multiple communication protocols
  • Soft start/stop with torque & voltage control
  • Operates in temperatures from -25 to 60°C
  • Compact size: 150mm width, 314mm height
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/250 VAC
Rated Current Ie - Heavy Duty
45 A
Rated Current Ie - Normal Duty
60 A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Heavy Duty
22 kW
Rated Power at 400V (Pe) - Normal Duty
30 kW
Built-in Communication
Modbus RTU
Control Features
Voltage Ramp, Torque Control, Kick Start
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
198 mm
Height
314 mm
Weight
4.6 kg
Width
150 mm

Environmental

IP Rating
IP00
Ambient Temperature
-25 to +60 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14

Documents

IPD Product Catalogue V17
