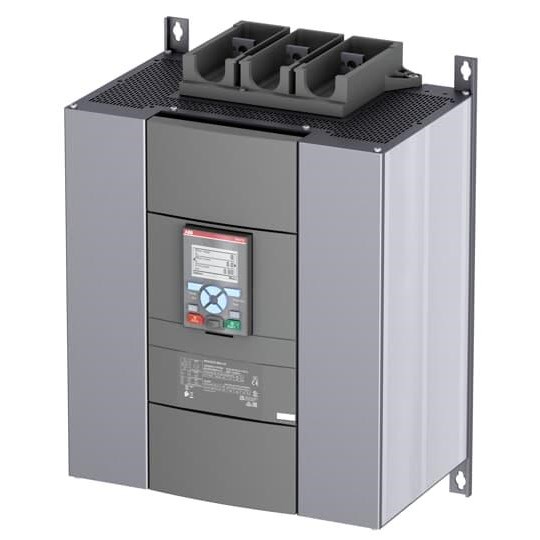

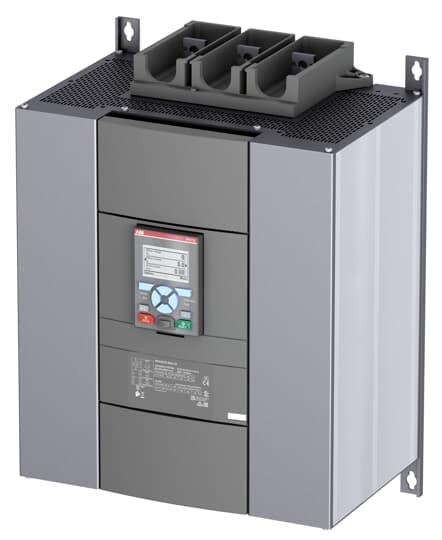

ABB PSTX570-600-70 Softstarter 570A 208-600VAC IP00

Product Code: PSTX570-600-70

  • Supports 208-600 VAC, 570 A, 50/60 Hz
  • Wide range of communication protocols incl. Modbus & BACnet
  • Soft start/stop with torque & voltage control options
  • Operational temp: -25 to 60°C; ambient: -40 to 70°C
  • IP00 protection, compact size: W361 x H493 x D282 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/250 VAC
Rated Current Ie - Heavy Duty
470A
Rated Current Ie - Normal Duty
570A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Heavy Duty
250kW
Rated Power at 400V (Pe) - Normal Duty
315kW
Built-in Communication
Modbus RTU
Control Features
Voltage Ramp, Torque Control, Kick Start
Rated Frequency
50/60Hz

Dimensions & Physical Data

Depth
282mm
Height
493mm
Weight
27kg
Width
361mm

Environmental

IP Rating
IP00
Ambient Temperature
-25°C to 60°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14

Documents

IPD Product Catalogue V17
