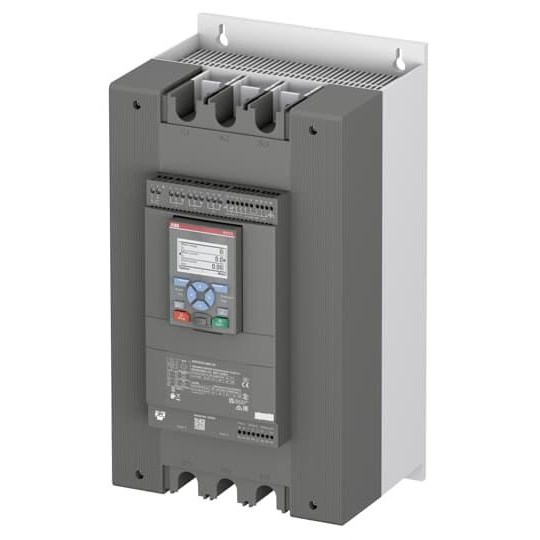

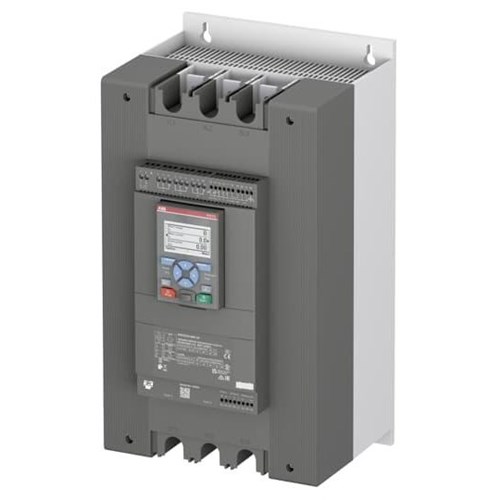

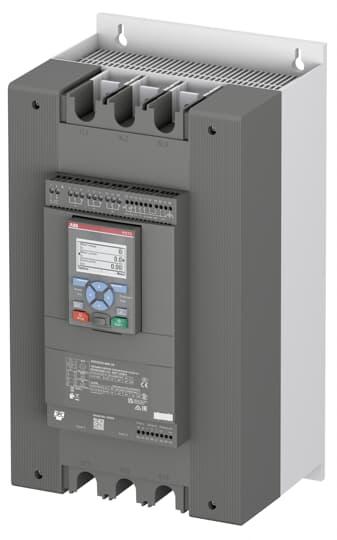

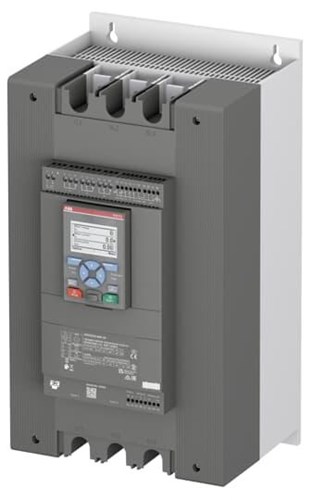

ABB PSTX370-600-70 Softstarter 370A 208-600VAC IP00

Product Code: PSTX370-600-70

  • Supports 208-600 VAC, 370 A, 50/60 Hz
  • Versatile comms: Modbus, EtherNet/IP, Profibus
  • Advanced soft start/stop & torque control
  • Compact size: W258 x H470 x D279 mm
  • Operates in -25 to 60°C environments
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/250 VAC
Rated Current Ie - Heavy Duty
300A
Rated Current Ie - Normal Duty
370A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Heavy Duty
160kW
Rated Power at 400V (Pe) - Normal Duty
200kW
Built-in Communication
Modbus RTU
Control Features
Voltage Ramp, Torque Control, Kick Start
Rated Frequency
50/60Hz

Dimensions & Physical Data

Depth
279mm
Height
470mm
Weight
15.5kg
Width
258mm

Environmental

IP Rating
IP00
Ambient Temperature
-25°C to 60°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14

Documents

IPD Product Catalogue V17
