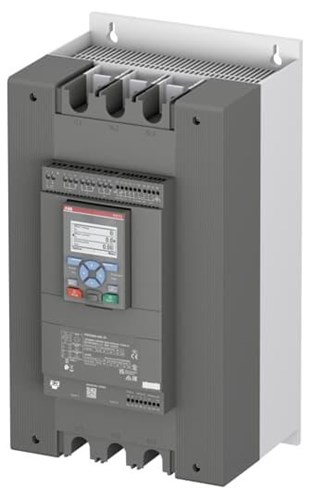

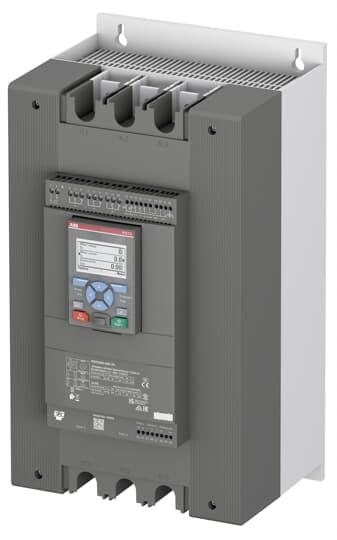

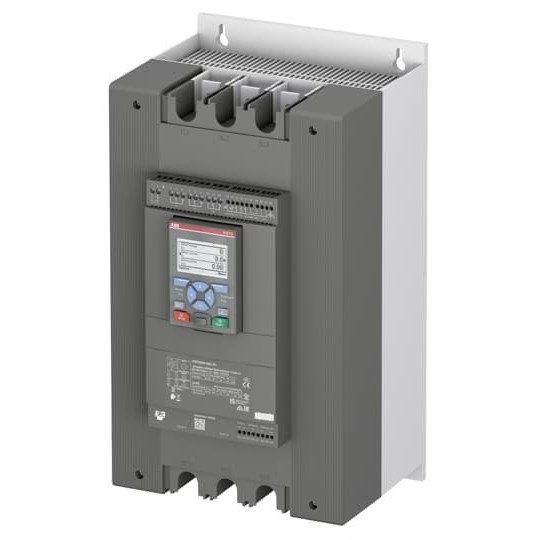

ABB PSTX300-600-70 Softstarter 300A 208-600VAC IP00

Product Code: PSTX300-600-70

  • Supports 208-600 VAC, 300 A for versatile use
  • Multi-protocol comms: Modbus, EtherNet/IP, BACnet
  • Advanced soft start/stop with torque control
  • Operates in -25 to 60°C; ambient -40 to 70°C
  • Compact design: 258x470x279 mm, weighs 15.5 kg
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/250 VAC
Rated Current Ie - Heavy Duty
250A
Rated Current Ie - Normal Duty
300A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Heavy Duty
132kW
Rated Power at 400V (Pe) - Normal Duty
160kW
Built-in Communication
Modbus RTU
Control Features
Voltage Ramp, Torque Control, Kick Start
Rated Frequency
50/60Hz

Dimensions & Physical Data

Depth
279mm
Height
470mm
Weight
15.5kg
Width
258mm

Environmental

IP Rating
IP00
Ambient Temperature
-25°C to 60°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14

Documents

IPD Product Catalogue V17
