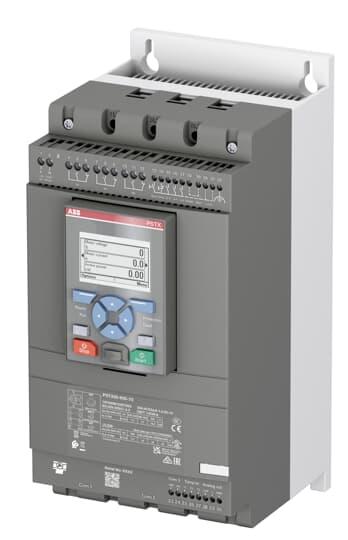

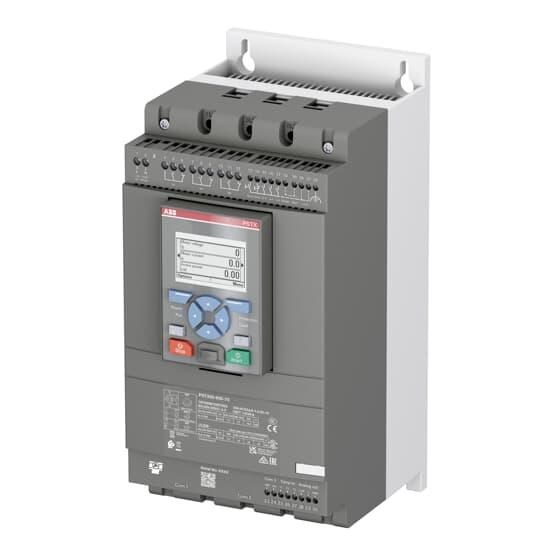

ABB PSTX30-600-70 Softstarter 30A 208-600VAC IP00

Product Code: PSTX30-600-70

  • Supports 208-600 VAC, 30 A at 50/60 Hz
  • Comprehensive communication protocols incl. Modbus & BACnet
  • Advanced soft start/stop functions with torque control
  • Operates in temperatures from -25 to 60°C
  • Integrated electronic overload protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/250 VAC
Rated Current Ie - Heavy Duty
22A
Rated Current Ie - Normal Duty
30A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Heavy Duty
11kW
Rated Power at 400V (Pe) - Normal Duty
15kW
Built-in Communication
Modbus RTU
Control Features
Voltage Ramp, Torque Control, Kick Start
Rated Frequency
50/60Hz

Dimensions & Physical Data

Depth
198mm
Height
314mm
Weight
4.6kg
Width
150mm

Environmental

IP Rating
IP00
Ambient Temperature
-25°C to 60°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14

Documents

IPD Product Catalogue V17
