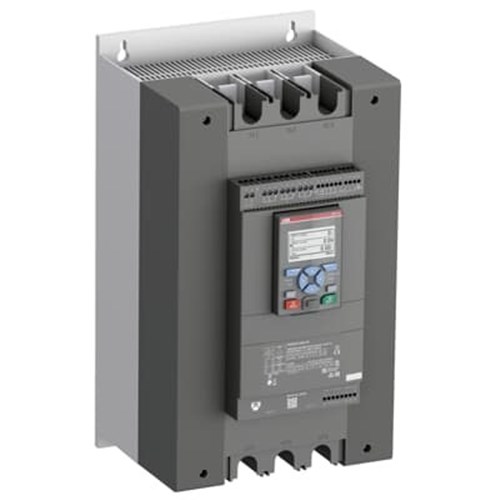

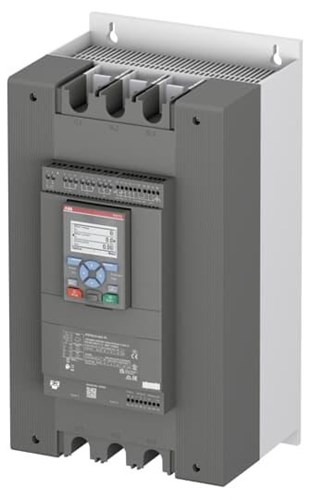

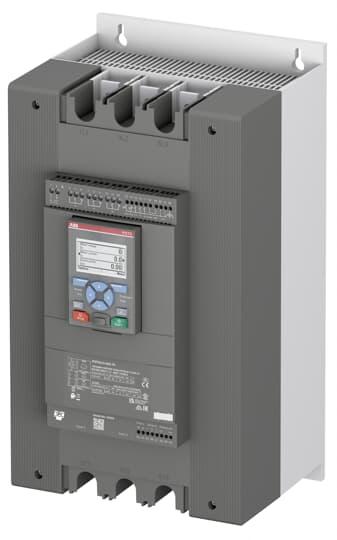

ABB PSTX210-600-70 Softstarter 210A 208-600VAC IP00

Product Code: PSTX210-600-70

  • Supports wide voltage range: 208-600 VAC
  • Extensive communication options incl. Modbus, EtherNet/IP
  • Advanced soft start/stop functions for motor control
  • Operates in extreme temps from -25 to 60°C
  • Compact design with dimensions of 258x470x279 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/250 VAC
Rated Current Ie - Heavy Duty
171 A
Rated Current Ie - Normal Duty
210 A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Heavy Duty
90 kW
Rated Power at 400V (Pe) - Normal Duty
110 kW
Built-in Communication
Modbus RTU
Control Features
Voltage Ramp, Torque Control, Kick Start
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
279 mm
Height
470 mm
Weight
13.3 kg
Width
258 mm

Environmental

IP Rating
IP00
Ambient Temperature
-25 to +60 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14

Documents

IPD Product Catalogue V17
