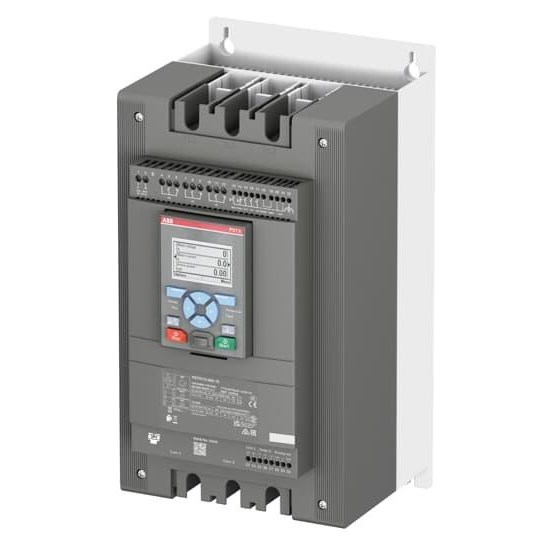

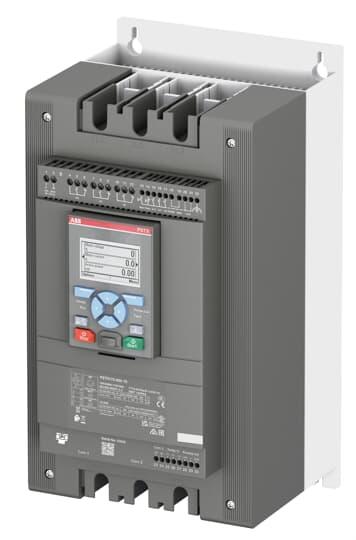

ABB PSTX170-600-70 Softstarter 170A 208-600VAC IP00

Product Code: PSTX170-600-70

  • Supports wide voltage range: 208-600 VAC
  • Advanced communication options incl. Modbus & EtherNet/IP
  • Soft start/stop with torque and voltage control
  • Integrated electronic overload protection
  • Operates in extreme temperatures: -25 to 60°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/250 VAC
Rated Current Ie - Heavy Duty
143A
Rated Current Ie - Normal Duty
171A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Heavy Duty
75kW
Rated Power at 400V (Pe) - Normal Duty
90kW
Built-in Communication
Modbus RTU
Control Features
Voltage Ramp, Torque Control, Kick Start
Rated Frequency
50/60Hz

Dimensions & Physical Data

Depth
283mm
Height
377mm
Weight
8.9kg
Width
199mm

Environmental

IP Rating
IP00
Ambient Temperature
-25°C to 60°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14
