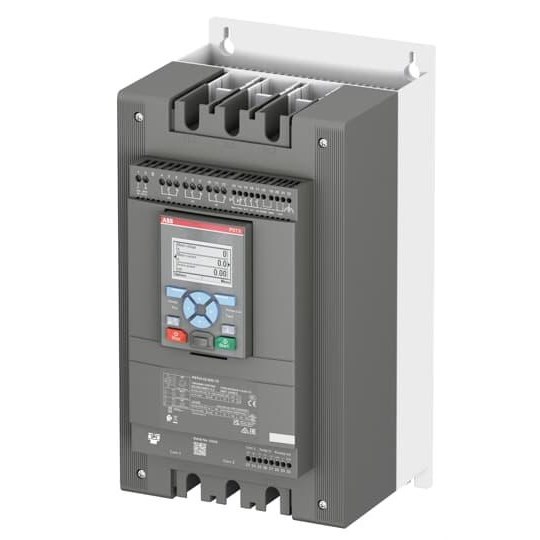

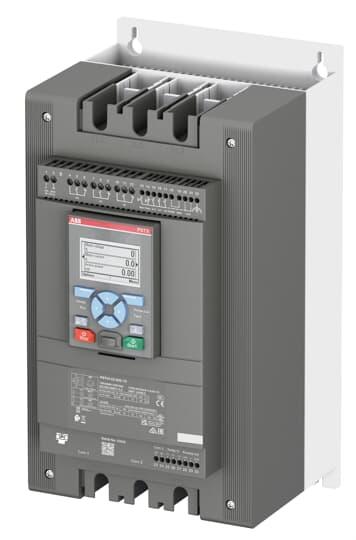

ABB PSTX142-600-70 Softstarter 142A 208-600VAC IP00

Product Code: PSTX142-600-70

  • Supports 208-600 VAC, 142 A, 50/60 Hz operations
  • Communicates via Modbus, EtherNet/IP, BACnet & more
  • Offers soft start/stop with torque & voltage control
  • Compact size: W199 x H377 x D283 mm; weighs 7 kg
  • Operates in -25 to 60°C; ambient -40 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/250 VAC
Rated Current Ie - Heavy Duty
106A
Rated Current Ie - Normal Duty
143A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Heavy Duty
55kW
Rated Power at 400V (Pe) - Normal Duty
75kW
Built-in Communication
Modbus RTU
Control Features
Voltage Ramp, Torque Control, Kick Start
Rated Frequency
50/60Hz

Dimensions & Physical Data

Depth
283mm
Height
377mm
Weight
7kg
Width
199mm

Environmental

IP Rating
IP00
Ambient Temperature
-25°C to 60°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14

Documents

IPD Product Catalogue V17
