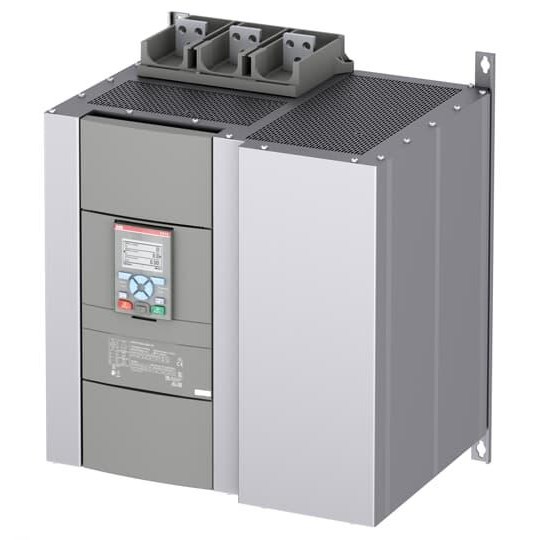

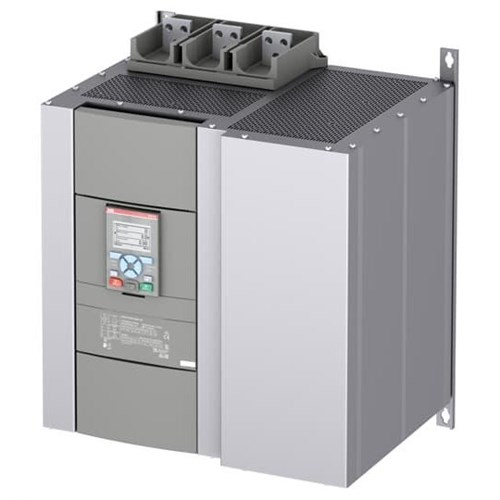

SOFT STARTER 710kW/1250A ND 110/240V CTL 560kW HD ABB 1SFA898121R7000

Product Code: PSTX1250-600-70

  • Supports voltages from 208-600 VAC
  • Rated current capacity of 1250 A
  • Compatible with multiple communication protocols
  • Offers soft start/stop with torque and voltage control
  • Operates in temperatures from -25 to 60°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starters
Brand
ABB

Electrical

Built-in Bypass
Yes
No. of N/C Contacts
0
No. of N/O Contacts
3
Rated Control Supply Voltage (Us)
100V to 250V AC
Rated Current Ie - Heavy Duty
1050A
Rated Current Ie - Normal Duty
1250A
Rated Operational Voltage (Ue)
208V to 600V AC
Rated Power at 400V (Pe) - Heavy Duty
560kW
Rated Power at 400V (Pe) - Normal Duty
710kW
Built-in Communication
Yes
Control Features
Soft start/stop with voltage or torque ramp, current limit, kick start, motor heating, pump cleaning, braking, diagnostics, sequence start, emergency/fire pump mode, built-in electronic overload.
Rated Frequency
50/60Hz
No. of Poles
3NO/0NC

Dimensions & Physical Data

Depth
367mm
Height
565mm
Weight
63.3kg
Width
435mm

Environmental

IP Rating
IP00
Ambient Temperature
-25°C to 60°C

Safety, Standards & Compliance

Standards and Approvals
IEC 60529, IEC 60947-1, EN 60529; CE; DNV; UNSPSC: 39121521
