Specifications

Product Type

Soft Starters

Brand

ABB

Built-in Bypass Yes	No. of N/C Contacts 0	No. of N/O Contacts 3
Rated Control Supply Voltage (Us) 100V to 250V AC	Rated Current Ie - Heavy Duty 840A	Rated Current Ie - Normal Duty 1050A
Rated Operational Voltage (Ue) 208V to 600V AC	Rated Power at 400V (Pe) - Heavy Duty 450kW	Rated Power at 400V (Pe) - Normal Duty 560kW
Built-in Communication Yes	Control Features Soft start/stop with voltage or torque ramp, current limit, kick start, motor heating, pump cleaning, braking, diagnostics, sequence start, emergency/fire pump mode, built-in electronic overload.	Rated Frequency 50/60Hz
No. of Poles 3NO/0NC

Depth 367mm	Height 515mm	Weight 62.3kg
Width 435mm

IP Rating

IP00

Ambient Temperature

-25°C to 60°C

Standards and Approvals

IEC 60529, IEC 60947-1, EN 60529; CE; DNV; UNSPSC: 39121521

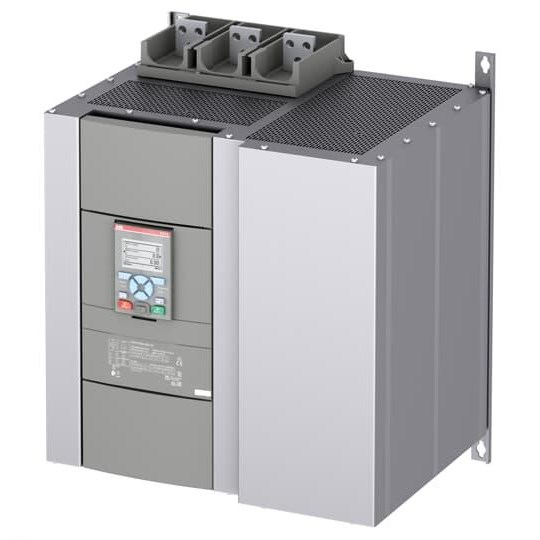

SOFT STARTER 560kW/1062A ND 110/240V CTL 450kW HD ABB 1SFA898120R7000
