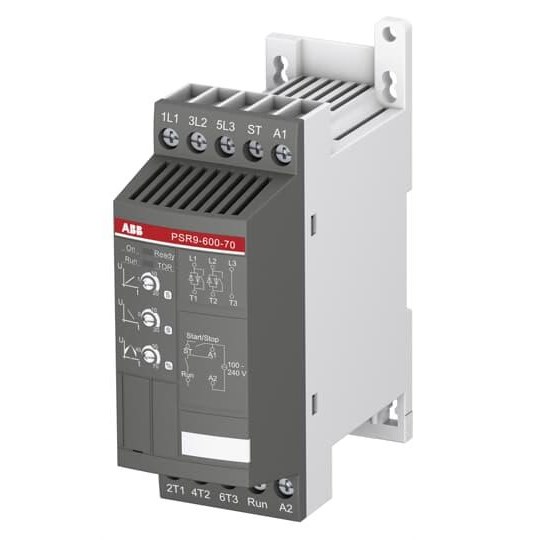

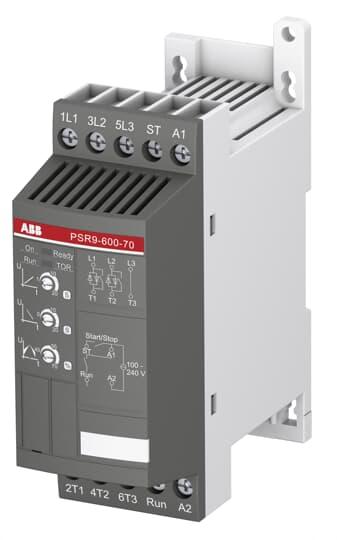

ABB PSR9-600-70 Softstarter 9A 208-600VAC IP20

Product Code: PSR9-600-70

  • Suitable for 208-600 VAC systems
  • Handles up to 9 A current
  • Compact dimensions: 114x140x45 mm
  • IP20 protection, NEMA 1 enclosure
  • Operates in -25 to 60°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/240 VAC
Rated Current Ie - Normal Duty
0.375
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Normal Duty
4 kW
Control Features
Voltage Ramp
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
45 mm
Height
140 mm
Weight
0.4 kg
Width
114 mm

Environmental

IP Rating
IP20
Ambient Temperature
-25 to +60 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14

Documents

IPD Product Catalogue V17
