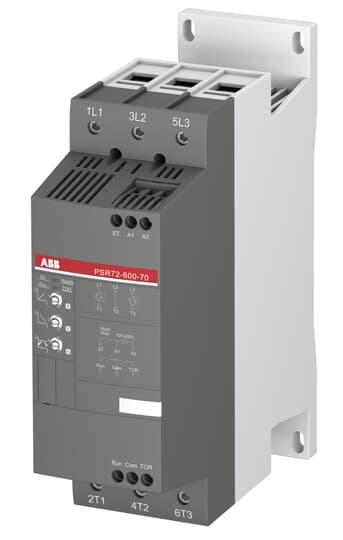

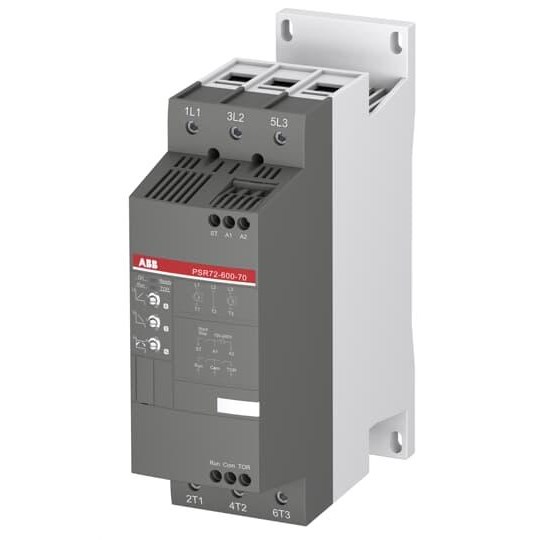

ABB PSR72-600-70 Softstarter 72A 208-600VAC IP10

Product Code: PSR72-600-70

  • Supports 208-600 VAC, 72 A, 50/60 Hz operations
  • Soft start/stop with voltage ramp feature
  • Compact design: 180x220x70 mm, weight 2.1 kg
  • Operates in -25 to 60°C; stores -40 to 70°C
  • FieldBusPlug communication for easy integration
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/240 VAC
Rated Current Ie - Normal Duty
72 A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Normal Duty
37 kW
Control Features
Voltage Ramp
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
70 mm
Height
220 mm
Weight
2.1 kg
Width
180 mm

Environmental

IP Rating
IP10
Ambient Temperature
-25 to +60 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14

Documents

IPD Product Catalogue V17
