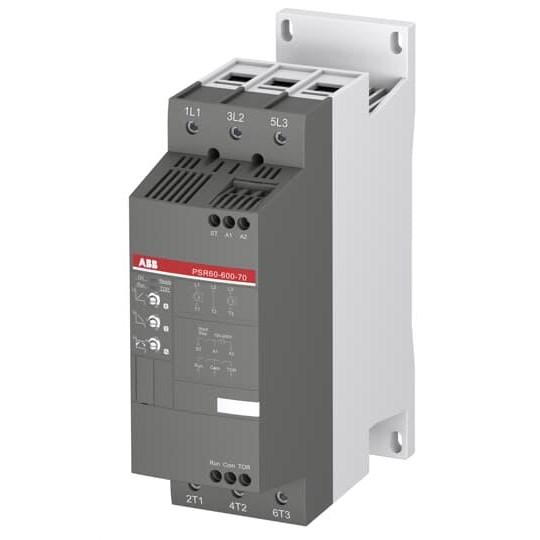

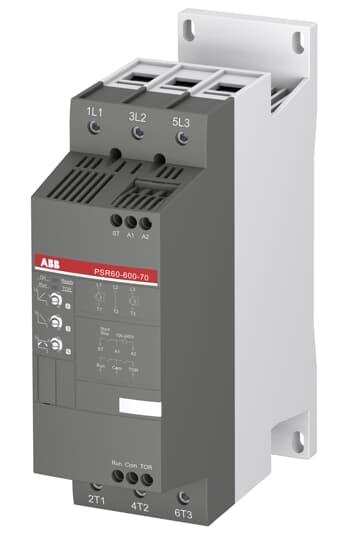

ABB PSR60-600-70 Softstarter 60A 208-600VAC IP10

Product Code: PSR60-600-70

  • Voltage range: 208-600 VAC, current: 60 A
  • Supports FieldBusPlug communication
  • Soft start/stop with voltage ramp function
  • Compact size: 180x220x70 mm, weight: 2.1 kg
  • Operating temp: -25 to 60°C, IP10 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/240 VAC
Rated Current Ie - Normal Duty
60 A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Normal Duty
30 kW
Control Features
Voltage Ramp
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
70 mm
Height
220 mm
Weight
2.1 kg
Width
180 mm

Environmental

IP Rating
IP10
Ambient Temperature
-25 to +60 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14

Documents

IPD Product Catalogue V17
