Specifications

Product Type

Compact Soft Starters

Brand

ABB

Built-in Bypass Yes	No. of N/C Contacts 0	No. of N/O Contacts 2
Rated Control Supply Voltage (Us) 24V AC/DC	Rated Current Ie - Normal Duty 60A	Rated Operational Voltage (Ue) 209V to 600V AC
Rated Power at 400V (Pe) - Normal Duty 30kW	Built-in Communication No	Control Features Soft start, soft stop, adjustable ramp time (0–20 s), initial voltage adjustment (40–70%), voltage ramp control.
Rated Frequency 50/60Hz	No. of Poles 2NO/0NC

Depth 180mm	Height 220mm	Weight 2.1kg
Width 70mm

IP Rating

IP10

Ambient Temperature

-25°C to 60°C

Standards and Approvals

IEC 60529, IEC 60947-1, EN 60529

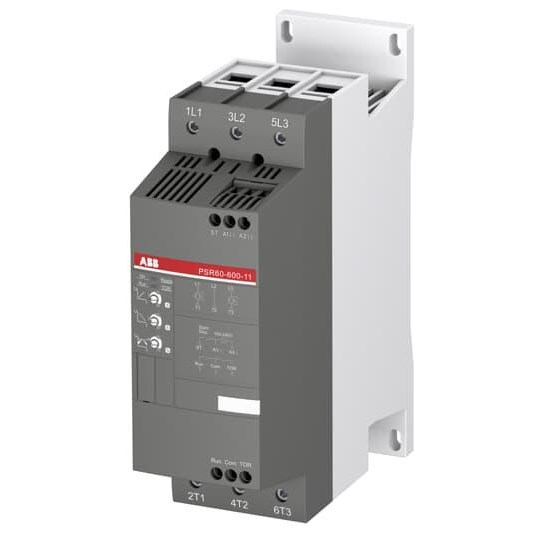

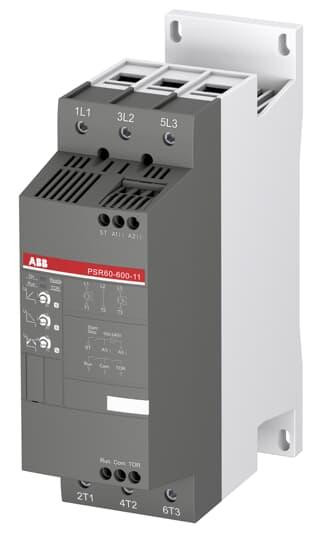

ABB PSR60-600-11 Softstarter 60A 208-600VAC IP10
