Specifications

Product Type

Compact Soft Starters

Brand

ABB

Built-in Bypass Yes	No. of N/C Contacts 0	No. of N/O Contacts 1
No. of Poles (NO/NC) 1NO/0NC	Rated Control Supply Voltage (Us) 100 ... 240 V AC	Rated Current Ie - Normal Duty 6.8 A
Rated Operational Voltage (Ue) 208 ... 600 V AC	Rated Power at 400V (Pe) - Normal Duty 3 kW	Built-in Communication No
Control Features Soft start, soft stop, adjustable ramp time (0–20 s), initial voltage adjustment (40–70%), voltage ramp control.	Rated Frequency 50/60 Hz

Depth 114 mm	Height 140 mm	Weight 0.4 kg
Width 45 mm

IP Rating

IP20

Ambient Temperature

-25°C to +60°C

Standards and Approvals

IEC 60529, IEC 60947-1, EN 60529; UNSPSC: 39121521

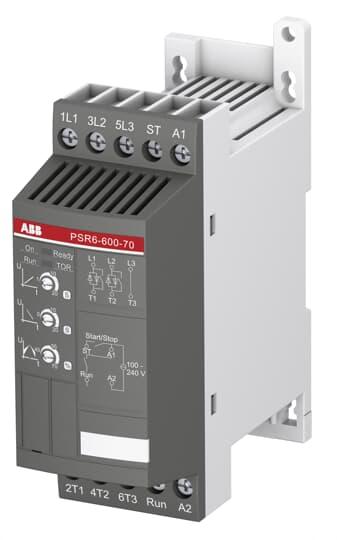

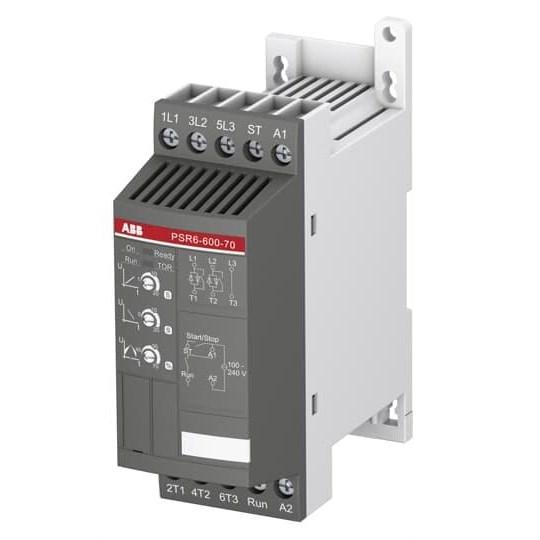

SOFT STARTER COMPACT 3P 3kW/6.1A 400V 110/240V CONTROL ABB 1SFA896104R7000
