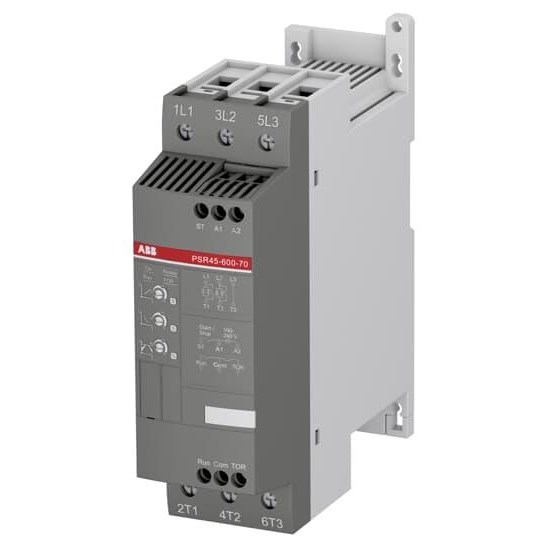

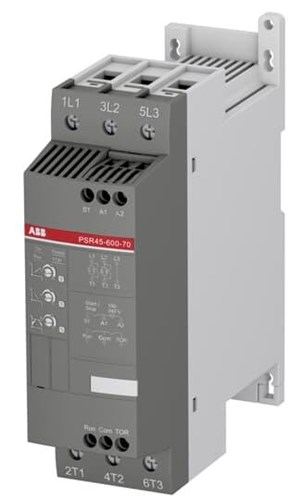

ABB PSR45-600-70 Softstarter 45A 208-600VAC IP10

Product Code: PSR45-600-70

  • Suitable for 208-600 VAC systems
  • Handles currents up to 45 A
  • Compact dimensions: 153x187x54 mm
  • Soft start/stop with voltage ramp
  • Operates in -25 to 60°C environments
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/240 VAC
Rated Current Ie - Normal Duty
45 A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Normal Duty
22 kW
Control Features
Voltage Ramp
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
54 mm
Height
187 mm
Weight
1 kg
Width
153 mm

Environmental

IP Rating
IP10
Ambient Temperature
-25 to +60 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14
