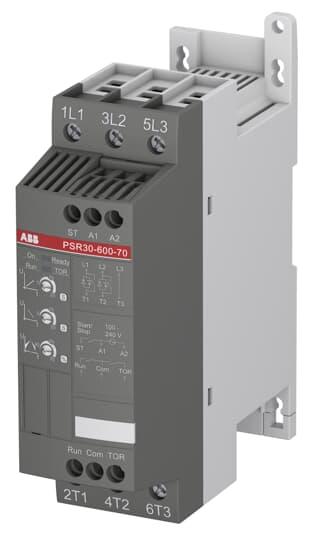

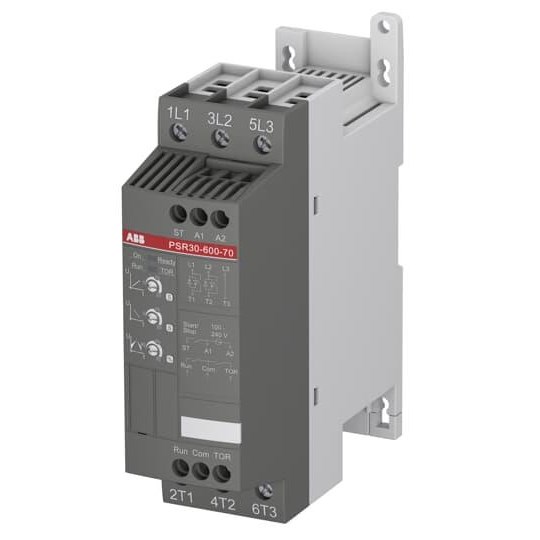

ABB PSR30-600-70 Softstarter 30A 208-600VAC IP20

Product Code: PSR30-600-70

  • Supports 208-600 VAC and 30 A current
  • IP20 protection with screw terminals
  • Soft start/stop with voltage ramp feature
  • Compact design: 128x160x45 mm, 0.6 kg
  • Operational temp range: -25 to 60°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/240 VAC
Rated Current Ie - Normal Duty
30A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Normal Duty
15kW
Control Features
Voltage Ramp
Rated Frequency
50/60Hz

Dimensions & Physical Data

Depth
45mm
Height
160mm
Weight
0.6kg
Width
128mm

Environmental

IP Rating
IP20
Ambient Temperature
-25°C to 60°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14

Documents

IPD Product Catalogue V17
