Specifications

Product Type

Compact Soft Starters

Brand

ABB

Built-in Bypass Yes	No. of N/C Contacts 0	No. of N/O Contacts 1
Rated Control Supply Voltage (Us) 100V to 240V AC	Rated Current Ie - Normal Duty 3.9A	Rated Operational Voltage (Ue) 208V to 600V AC
Rated Power at 400V (Pe) - Normal Duty 1.5kW	Built-in Communication No	Control Features Soft start, soft stop, adjustable ramp time (0–20 s), initial voltage adjustment (40–70%), voltage ramp control.
Rated Frequency 50/60Hz	No. of Poles 1NO/0NC

Depth 114mm	Height 140mm	Weight 0.4kg
Width 45mm

IP Rating

IP20

Ambient Temperature

-25°C to 60°C

Standards and Approvals

IEC 60529, IEC 60947-1, EN 60529; UNSPSC: 39121521

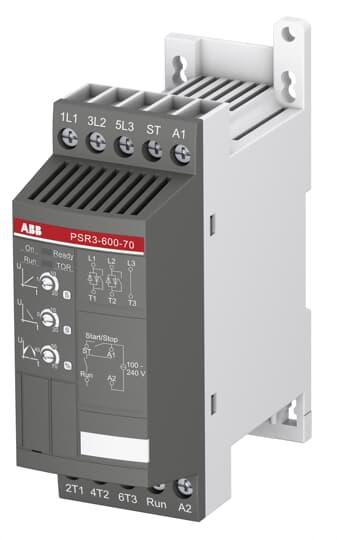

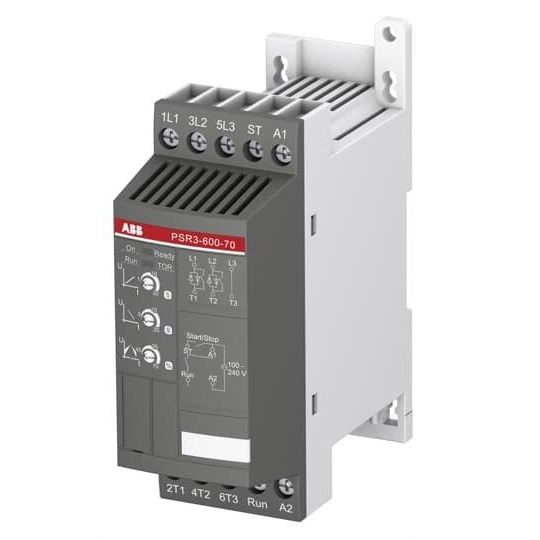

SOFT STARTER COMPACT 3P 1.5kW/3.4A 400V 110/240V CONTROL ABB 1SFA896103R7000
