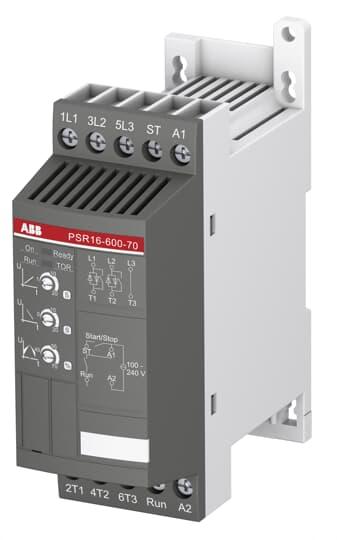

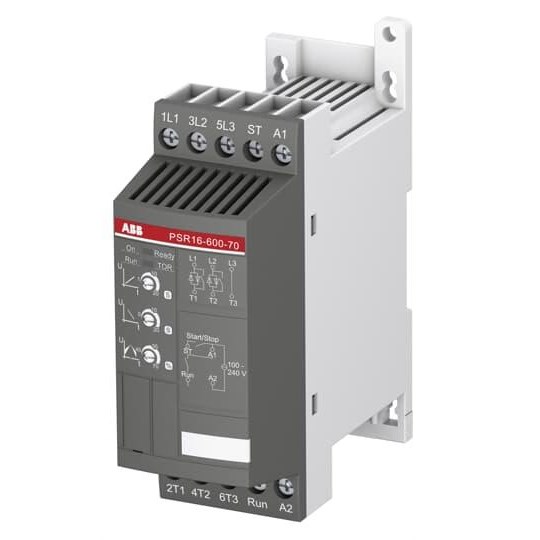

ABB PSR16-600-70 Softstarter 16A 208-600VAC IP20

Product Code: PSR16-600-70

  • Supports 208-600 VAC, 16 A, 50/60 Hz
  • Compact design with IP20 protection
  • Soft start/stop with voltage ramp
  • Operates in -25 to 60°C environments
  • FieldBusPlug communication enabled
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/240 VAC
Rated Current Ie - Normal Duty
16 A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Normal Duty
7.5 kW
Control Features
Voltage Ramp
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
45 mm
Height
140 mm
Weight
0.4 kg
Width
114 mm

Environmental

IP Rating
IP20
Ambient Temperature
-25 to +60 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14
