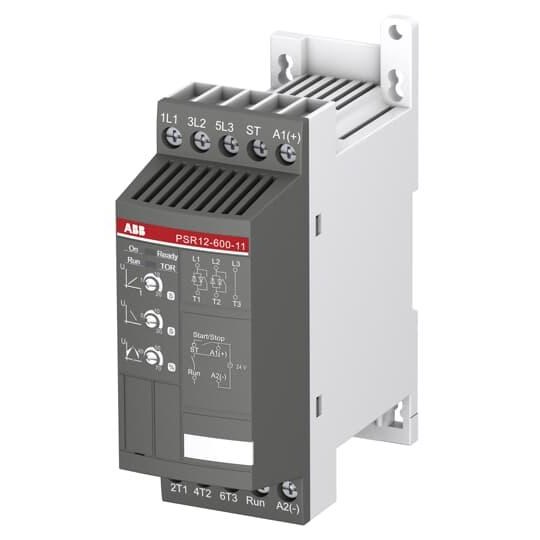

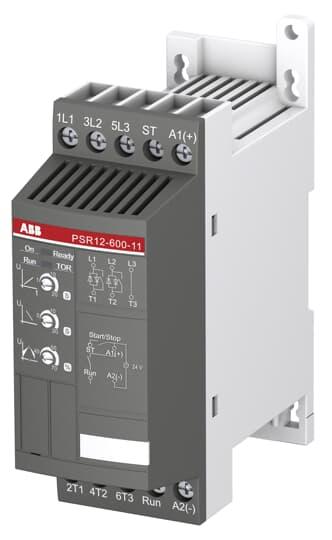

ABB PSR12-600-11 Softstarter 12A 208-600VAC IP20

Product Code: PSR12-600-11

  • Compact design with 114mm width
  • Handles 208-600 VAC, 12 A
  • IP20 protection rating
  • Operates in -25 to 60°C range
  • NEMA 1 enclosure for indoor use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
24 VAC/DC
Rated Current Ie - Normal Duty
12 A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Normal Duty
5.5 kW
Control Features
Voltage Ramp
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
45 mm
Height
140 mm
Weight
0.4 kg
Width
114 mm

Environmental

IP Rating
IP20
Ambient Temperature
-25 to +60 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14

Documents

IPD Product Catalogue V17
