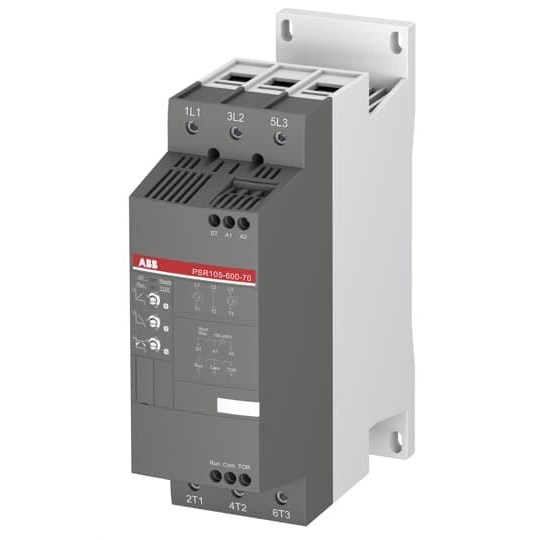

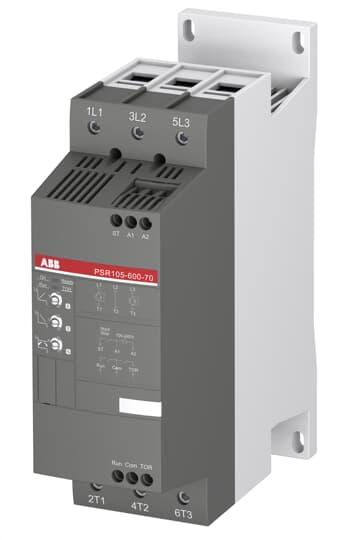

ABB PSR105-600-70 Softstarter 105A 208-600VAC IP10

Product Code: PSR105-600-70

  • Compact size with dimensions: 180x220x70 mm
  • Suitable for 208-600 VAC, 50/60 Hz systems
  • Connects via FieldBusPlug communication
  • Soft start & stop with voltage ramp function
  • Operates in -25 to 60°C environments
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/240 VAC
Rated Current Ie - Normal Duty
105A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Normal Duty
55kW
Control Features
Voltage Ramp
Rated Frequency
50/60Hz

Dimensions & Physical Data

Depth
70mm
Height
220mm
Weight
2.1kg
Width
180mm

Environmental

IP Rating
IP10
Ambient Temperature
-25°C to 60°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14
