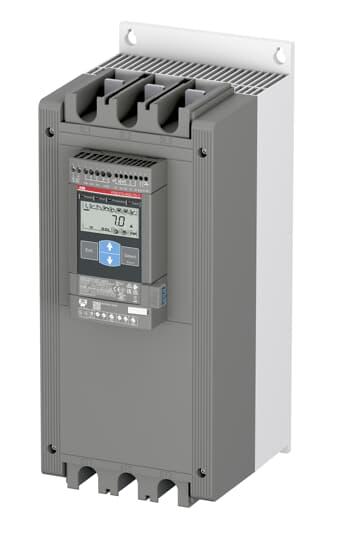

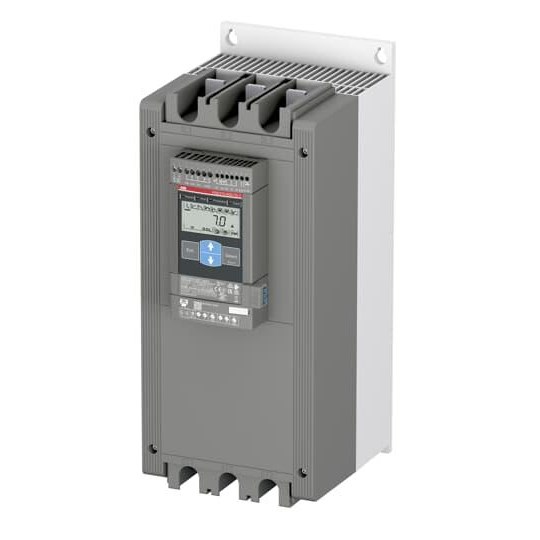

ABB PSE370-600-70-1 Softstarter 370A 208-600VAC IP00

Product Code: PSE370-600-70-1

  • Soft start/stop with torque & voltage control
  • Rated for 208-600 VAC, 370 A
  • Modbus RTU communication enabled
  • Compact size: 190x435x237 mm
  • Operational temp: -25 to 60°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/250 VAC
Rated Current Ie - Heavy Duty
300A
Rated Current Ie - Normal Duty
370A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Heavy Duty
160kW
Rated Power at 400V (Pe) - Normal Duty
200kW
Built-in Communication
Modbus RTU
Control Features
Voltage Ramp, Torque Control, Kick Start
Rated Frequency
50/60Hz

Dimensions & Physical Data

Depth
237mm
Height
435mm
Weight
10.6kg
Width
190mm

Environmental

IP Rating
IP00
Ambient Temperature
-25°C to 60°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14

Documents

IPD Product Catalogue V17
