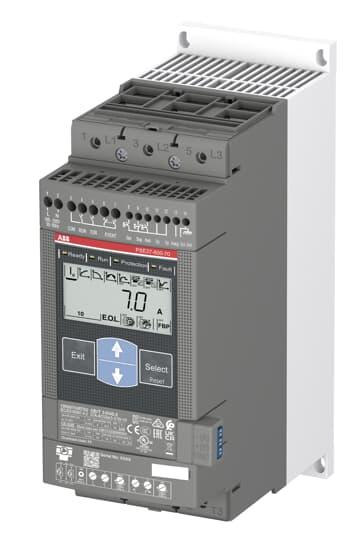

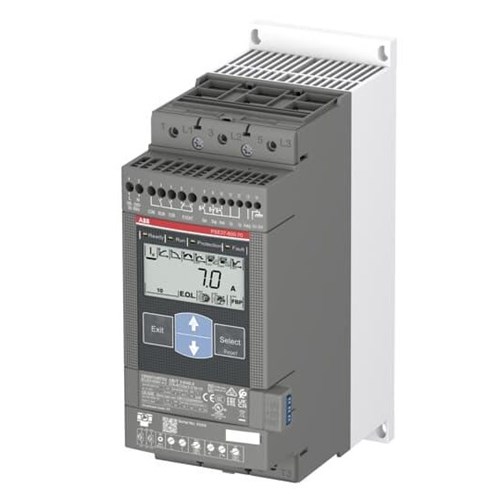

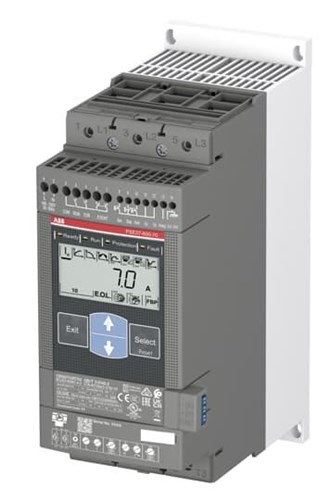

ABB PSE37-600-70 Softstarter 37A 208-600VAC IP00

Product Code: PSE37-600-70

  • Rated Voltage: 208-600 VAC, Current: 37 A
  • Soft Start/Stop with Torque & Voltage Control
  • Modbus RTU Communication Enabled
  • Integrated Electronic Overload Protection
  • Compact Size: 90mm W x 245mm H x 184mm D
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/250 VAC
Rated Current Ie - Heavy Duty
30A
Rated Current Ie - Normal Duty
37A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Heavy Duty
15kW
Rated Power at 400V (Pe) - Normal Duty
18.5kW
Built-in Communication
Modbus RTU
Control Features
Voltage Ramp, Torque Control, Kick Start
Rated Frequency
50/60Hz

Dimensions & Physical Data

Depth
184mm
Height
245mm
Weight
2.5kg
Width
90mm

Environmental

IP Rating
IP00
Ambient Temperature
-25°C to 60°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14
