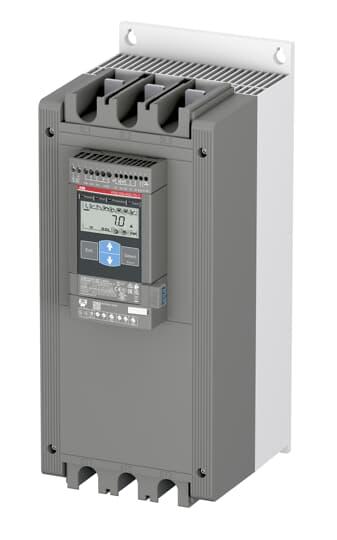

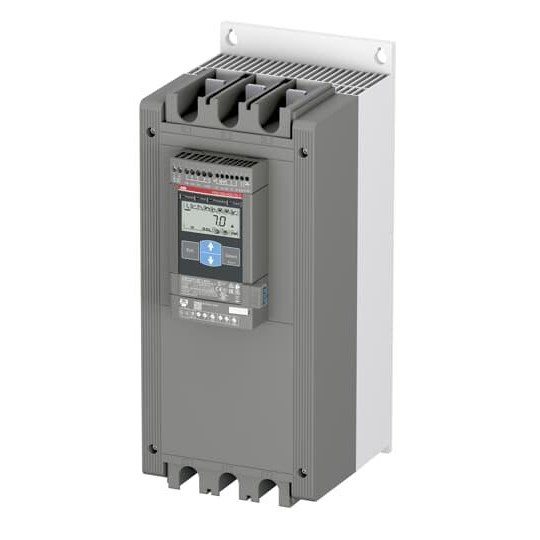

ABB PSE300-600-70-1 Softstarter 300A 208-600VAC IP00

Product Code: PSE300-600-70-1

  • Rated for 208-600 VAC, 300 A, and 50/60 Hz
  • Supports Modbus RTU communication
  • Soft start/stop with torque & voltage control
  • IP00 protection, green colour, compact design
  • Operates in temperatures from -25 to 60°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/250 VAC
Rated Current Ie - Heavy Duty
250 A
Rated Current Ie - Normal Duty
300 A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Heavy Duty
132 kW
Rated Power at 400V (Pe) - Normal Duty
160 kW
Built-in Communication
Modbus RTU
Control Features
Voltage Ramp, Torque Control, Kick Start
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
237 mm
Height
435 mm
Weight
10.6 kg
Width
190 mm

Environmental

IP Rating
IP00
Ambient Temperature
-25 to +60 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14

Documents

IPD Product Catalogue V17
