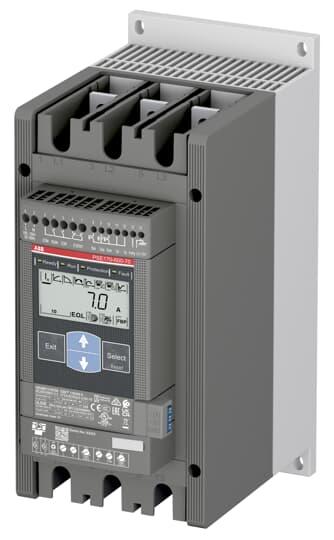

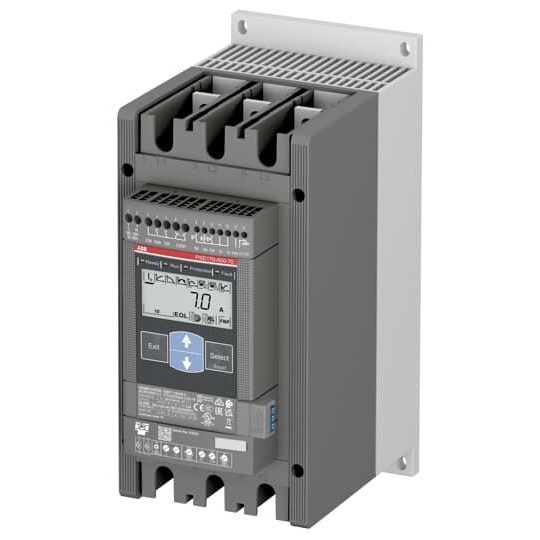

ABB PSE170-600-70 Softstarter 171A 208-600VAC IP00

Product Code: PSE170-600-70

  • Rated for 208-600 VAC, 171 A
  • Supports Modbus RTU communication
  • Soft start/stop with torque & voltage control
  • Operational temp: -25 to 60°C
  • Compact design: 130x295x220 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Soft Starter
Brand
ABB

Electrical

Built-in Bypass
Yes
Rated Control Supply Voltage (Us)
100/250 VAC
Rated Current Ie - Heavy Duty
143 A
Rated Current Ie - Normal Duty
171 A
Rated Operational Voltage (Ue)
208/600 VAC
Rated Power at 400V (Pe) - Heavy Duty
75 kW
Rated Power at 400V (Pe) - Normal Duty
90 kW
Built-in Communication
Modbus RTU
Control Features
Voltage Ramp, Torque Control, Kick Start
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
220 mm
Height
295 mm
Weight
4.4 kg
Width
130 mm

Environmental

IP Rating
IP00
Ambient Temperature
-25 to +60 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14
