Specifications

Product Type

Soft Starter

Brand

ABB

Built-in Bypass Yes	Rated Control Supply Voltage (Us) 100/250 VAC	Rated Current Ie - Heavy Duty 85 A
Rated Current Ie - Normal Duty 106 A	Rated Operational Voltage (Ue) 208/600 VAC	Rated Power at 400V (Pe) - Heavy Duty 45 kW
Rated Power at 400V (Pe) - Normal Duty 55 kW	Built-in Communication Modbus RTU	Control Features Voltage Ramp, Torque Control, Kick Start
Rated Frequency 50/60 Hz

Depth 184 mm	Height 245 mm	Weight 2.9 kg
Width 90 mm

IP Rating

IP00

Ambient Temperature

-25 to +60 °C

Standards and Approvals

IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14

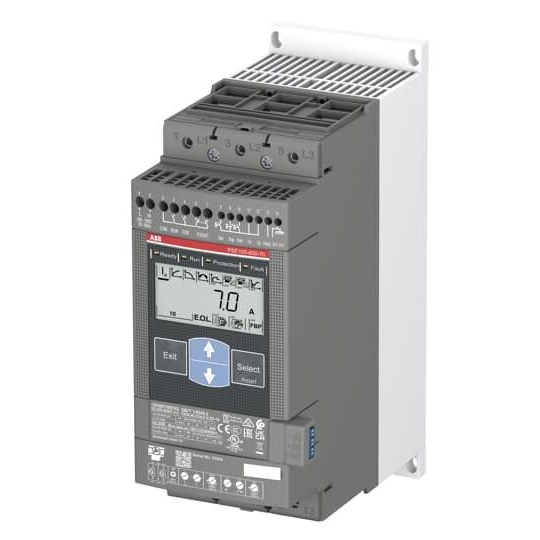

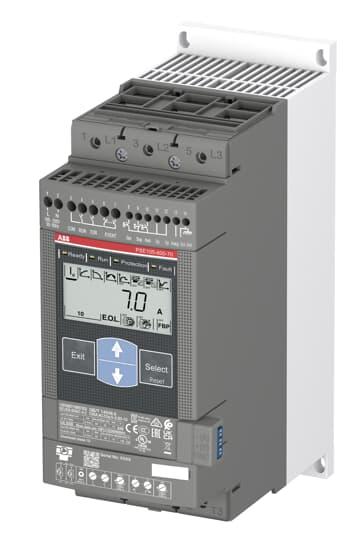

ABB PSE105-600-70 Softstarter 106A 208-600VAC IP00
