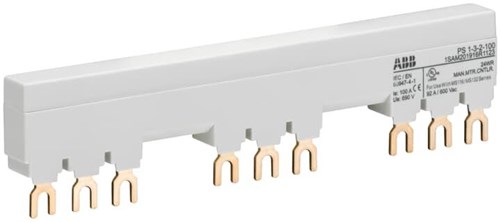

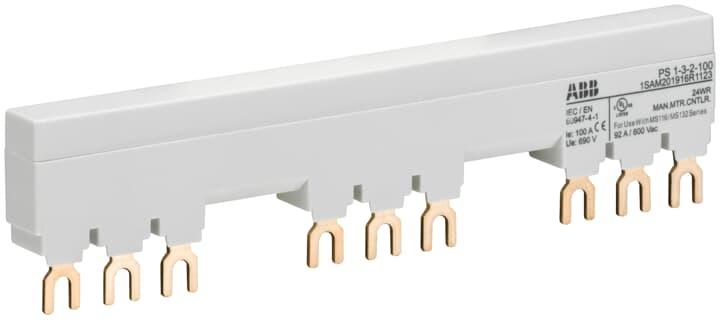

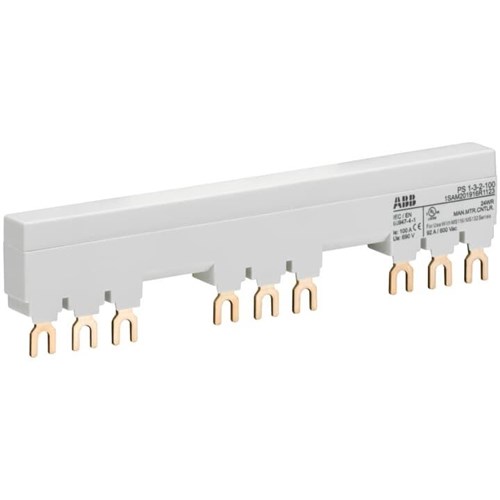

ABB PS1-3-2-100 Busbar 9-P 100A 690/250VAC/DC IP20 For: MS116 MS132 and MO132 Motor Starters

Product Code: PS1-3-2-100

Rated for 100 A and 690/250 VAC/VDC
Compact size: 167.5mm x 38.8mm x 13mm
Suitable with MS116, MS132, MO132 starters
High short circuit current: 100 kA
Complies with IEC/EN & UL standards

1

Specifications

General

Product Type

Manual Motor Starters Accessories

Brand

ABB

Dimensions & Physical Data

Depth 13 mm	Height 38.8 mm	Weight 0.105 kg
Width 167.5 mm

Accessories & Additional Information

Suitable Product Range

MS116 MS132 MO132
