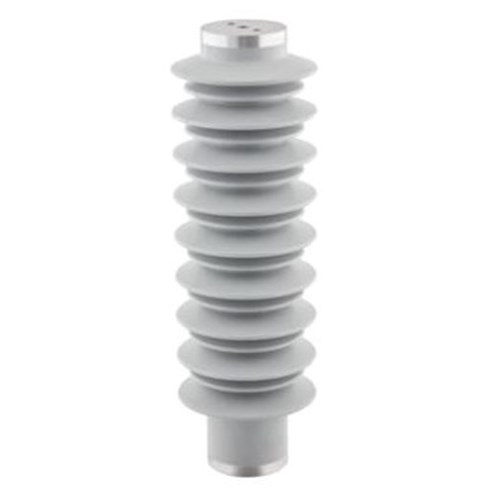

ABB POLIM-S-43 Surge Arrester 129kA 10kA 43kV Moulded Silicone Grey

Product Code: POLIM-S-43

  • Rated Voltage: 43 kV, Current: 10 kA
  • Meets IEC 60099-4 standards
  • Moulded silicone construction
  • Operates in -60 to 40°C range
  • Handles lightning impulse of 129 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
Hitachi Energy
Series
POLIM-S N
Application
MV terminal of power transformers, star point, Arc furnace transformers, Traction systems - fixed installations, Rolling stock and high speed trains, Capacitors and capacitor banks, high capacity, MV Motors

Electrical

Short Circuit Current Rating
50kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
43 kV AC

Dimensions & Physical Data

Height
640mm

Environmental

Operating Temperature
-60°C to 55°C

Documents

IPD Product Catalogue V17
