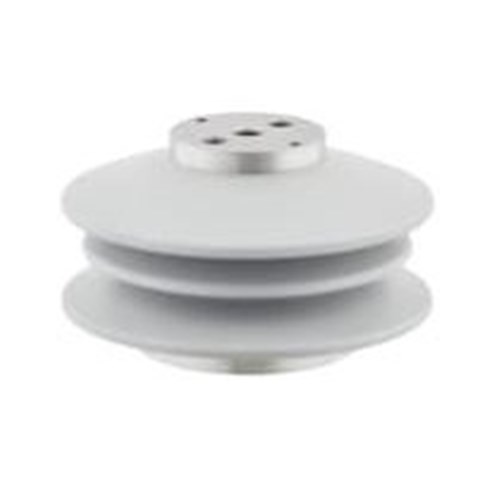

ABB POLIM-H-0.56-SD Surge Arrester 1.47kA 20kA 0.56kV Moulded Silicone Grey

Product Code: POLIM-H-0.56-SD

  • Rated for 0.56 kV voltage
  • Handles up to 20 kA current
  • Made from moulded silicone
  • Operates from -60 to 40°C
  • Complies with IEC 60099-4 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
Hitachi Energy
Series
POLIM-H SD
Application
Fixed installations in DC traction systems (A1 and A2), Equipment on rolling stock and locomotives (A1), Secondary devices in DC installations

Electrical

Short Circuit Current Rating
40kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
0.56 kV DC

Dimensions & Physical Data

Height
90mm

Environmental

Operating Temperature
-60°C to 40°C

Documents

IPD Product Catalogue V17
