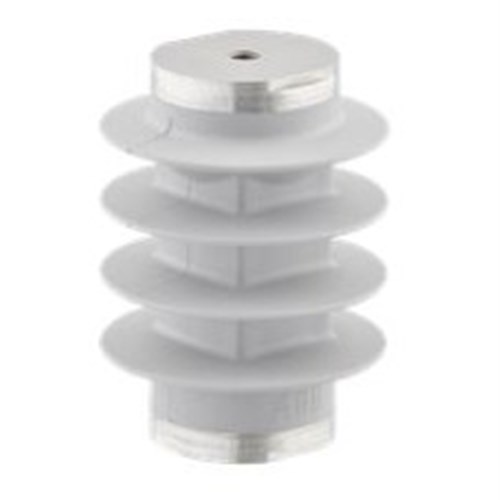

ABB POLIM-C-4.2HD Surge Arrester 12.4kA 10kA 4.2kV Moulded Silicone Grey

Product Code: POLIM-C-4.2HD

  • Rated for 4.2 kV voltage and 10 kA current
  • Operates in -60 to 40°C ambient temp range
  • Made from durable moulded silicone
  • Complies with EN 50526-1, IEC 62848-1 standards
  • Handles lightning impulse current up to 12.4 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
Hitachi Energy
Series
POLIM-C HD
Application
Fixed installations in DC traction systems (A1), Equipment on rolling stock and locomotives (A1), Devices in DC installation

Electrical

Short Circuit Current Rating
40kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
4.2 kV DC

Dimensions & Physical Data

Height
147.5mm

Environmental

Operating Temperature
-60°C to 40°C

Documents

IPD Product Catalogue V17
