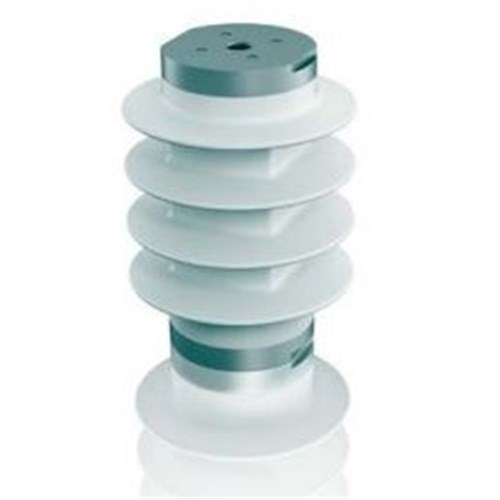

ABB POLIM-C-2HD Surge Arrester 6.2kA 10kA 2kV Moulded Silicone Grey

Product Code: POLIM-C-2HD

  • Rated Voltage: 2 kV
  • Handles up to 10 kA current
  • Grey moulded silicone construction
  • Operates in -60 to 40°C range
  • Complies with EN and IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
Hitachi Energy
Series
POLIM-C HD
Application
Fixed installations in DC traction systems (A1), Equipment on rolling stock and locomotives (A1), Devices in DC installation

Electrical

Short Circuit Current Rating
40kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
2.0 kV DC

Dimensions & Physical Data

Height
147.5mm

Environmental

Operating Temperature
-60°C to 40°C

Documents

IPD Product Catalogue V17
