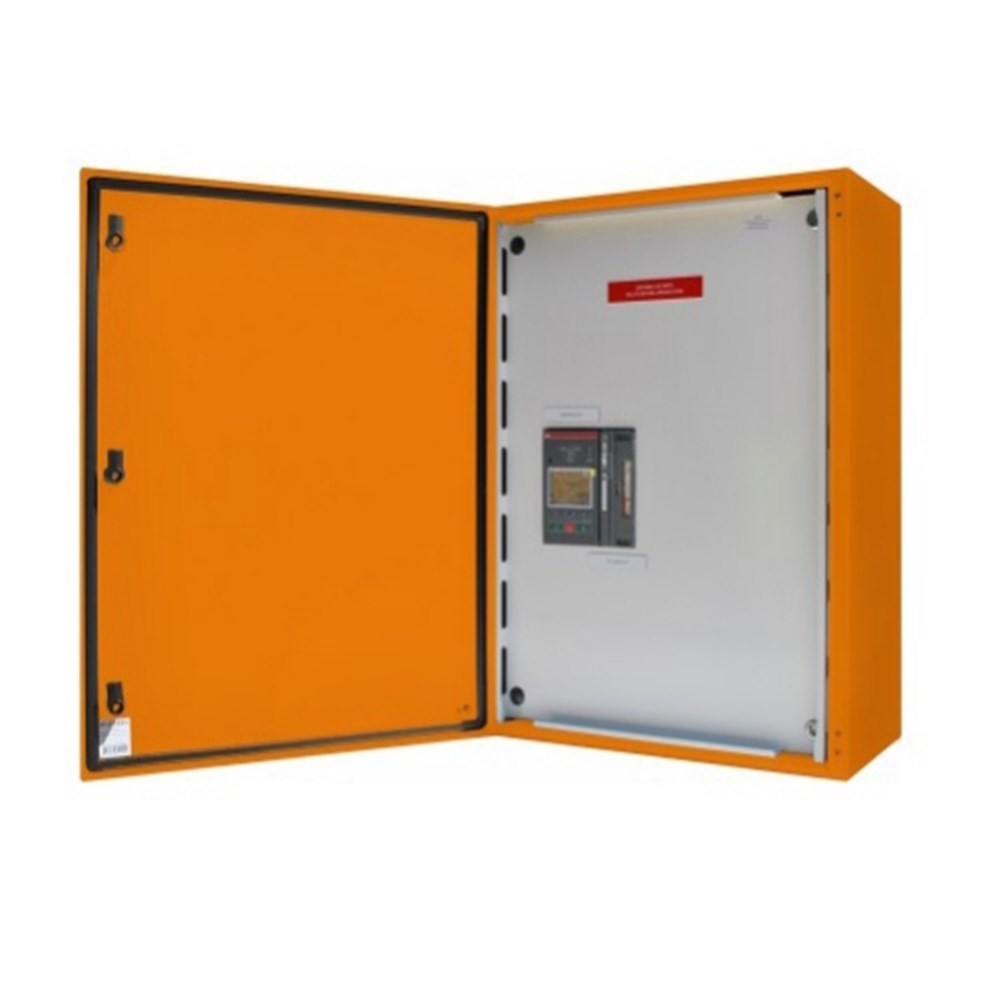

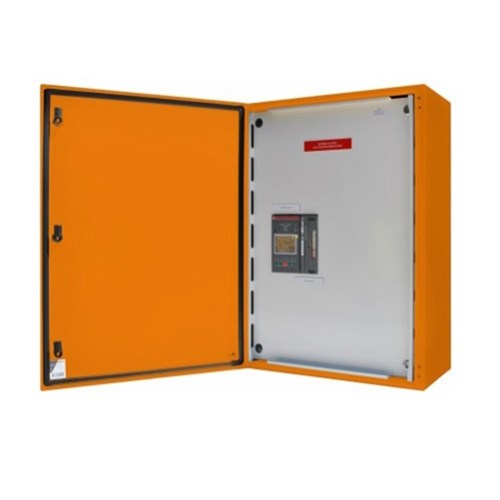

ABB OXB800E3S3QTEA Automatic Transfer Switch 3P+N-P 800A 200-480VAC Mild Steel IP65

Product Code: OXB800E3S3QTEA

  • Rated for 800A current capacity

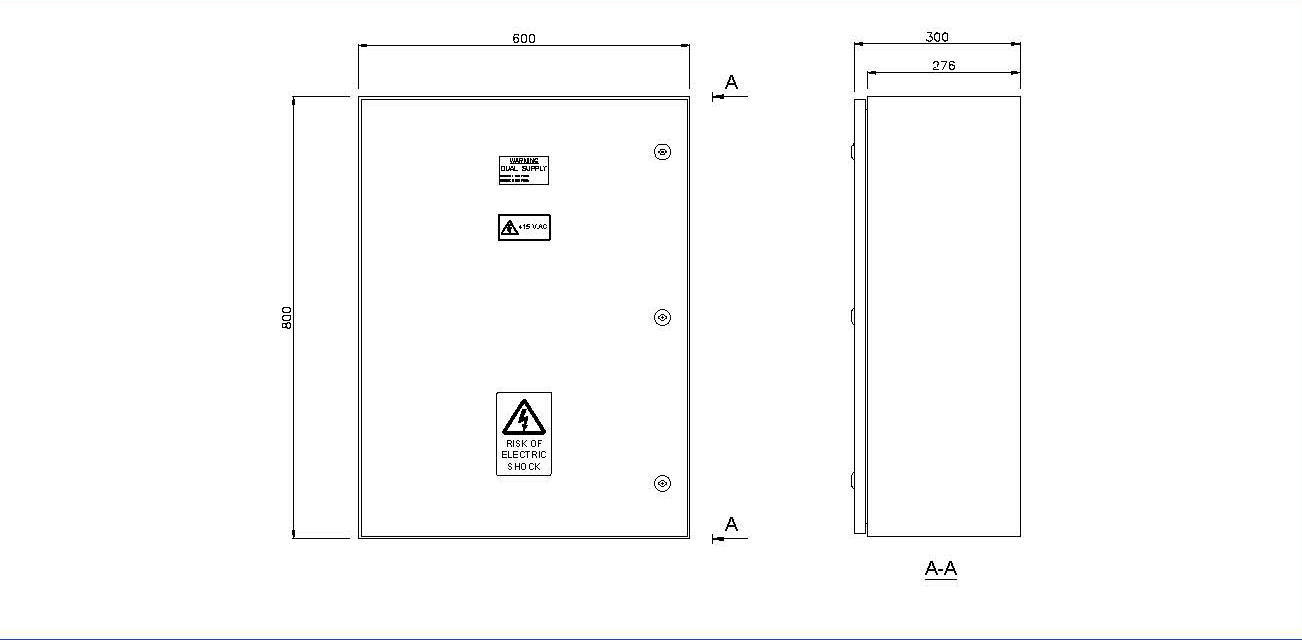

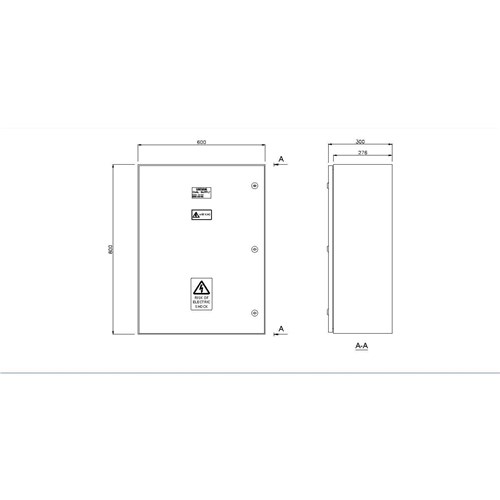

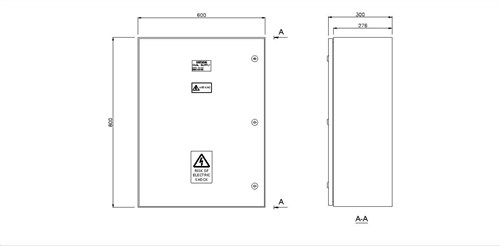

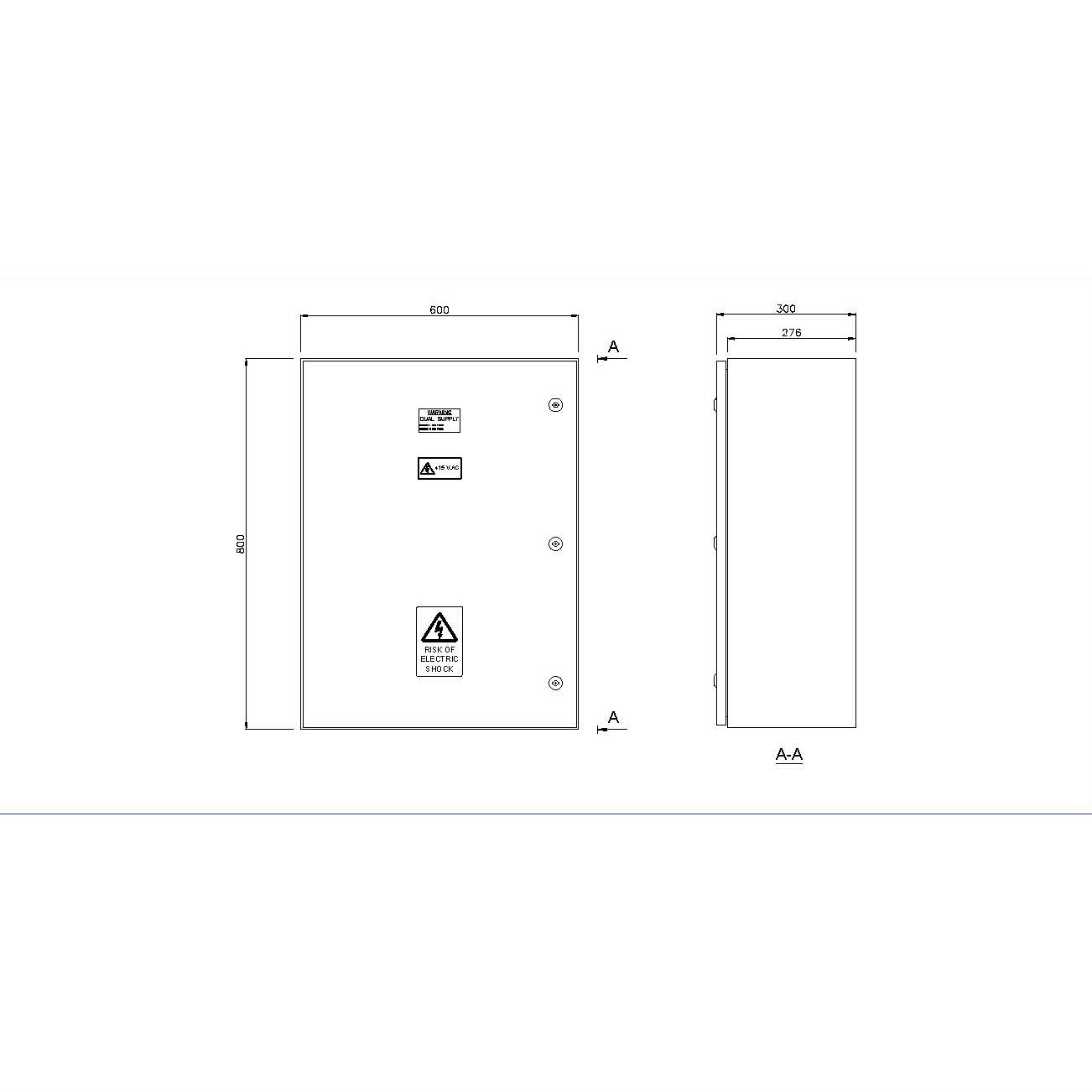

  • Compact size: 600x800x300mm
  • Vibrant RAL 2000 Orange finish
  • IP65 protection against dust and water
  • Complies with IEC60947-6-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Transfer Switch
Brand
ABB
Series
TruONE
Application
Healthcare, manufacturing, utilities

Electrical

Max. Rated Operation AC Voltage (Ue)
480V
Position of Line Terminals
Supplies on Top - Load on Bottom
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 200...480V AC
Rated Operation Power at AC-31b (Ie)
(200 … 415V AC) 800 A
Rated Short Time Withstand Current (Icw)
for 0.1 s 42 kiloampere rms
Power Loss
at Rated Operating Conditions per Pole 47W Total 141W
Rated Current (In)
800A
Rated Frequency
Main Circuit 50-60Hz
Special Functions
Open style
Transition Type
Delayed
No. of Poles
4P

Dimensions & Physical Data

Depth
212mm
Height
313mm
Weight
21.43kg
Width
512mm

Environmental

Pollution Degree
3
Operating Temperature
-25°C to 70°C
IP Rating
Front IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-6-1
