Products

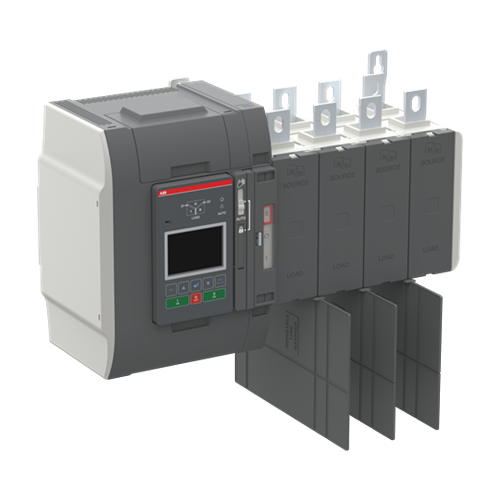

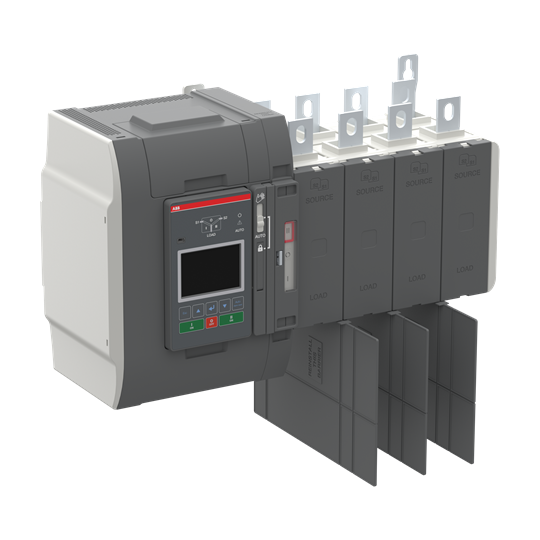

ABB OXB800E3S3QT Automatic Transfer Switch 4-P 800A 200-480VAC IP20

Product Code: OXB800E3S3QT

  • Rated for up to 800 A current
  • Supports 200-480 VAC voltage range
  • Complies with IEC60947-6-1 standards
  • Features IP20 protection rating
  • Direct mounted handle design
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Transfer Switch
Brand
ABB
Series
OXB800E

Electrical

Position of Line Terminals
Source 1 and Source 2 on top, load on bottom
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
200V to 480V AC
Rated Operation Power at AC-31b (Ie)
800 A (200…415V AC)
Rated Short Time Withstand Current (Icw)
42kA (0.1s)
Power Loss
141000W
Rated Current (In)
800A
Rated Frequency
50/60Hz
Transition Type
Delayed
No. of Poles
3P
Controller Type
Level 3 (LCD)

Dimensions & Physical Data

Depth
212mm
Height
313mm
Weight
21.43kg
Width
512mm

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
UL 1008 / IEC 60947-6-1
