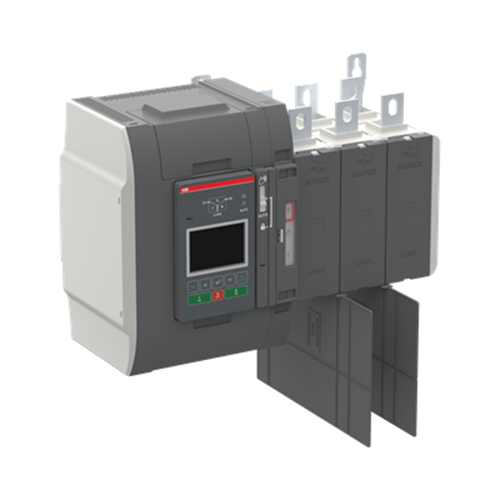

ABB OXB630E3X3QT Automatic Transfer Switch 4-P 250A 200-480VAC IP20

Product Code: OXB630E3X3QT

  • Supports 250 A current and 200-480 VAC voltage
  • Complies with IEC60947-6-1 standards
  • Compact size: 375mm W x 305mm H x 183mm L
  • IP20 protection with bolt terminal type
  • Direct mounted handle for easy operation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Transfer Switch
Brand
ABB
Series
TruONE
Application
Transformer - Transformer, Transformer - Generator

Electrical

Position of Line Terminals
Supplies on Top - Load on Bottom
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
200V to 480V AC
Rated Short Time Withstand Current (Icw)
42000A
Power Loss
84W
Rated Current (In)
630A
Rated Frequency
50/60Hz
Special Functions
Open style
Transition Type
Delayed
Mechanical Life
3012 cycles
No. of Poles
3P

Mechanical

Padlockable
Padlockable to prevent automatic and manual operation

Dimensions & Physical Data

Depth
212mm
Height
313mm
Weight
19.15kg
Width
447mm

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
Operating Temperature
-25°C to 70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-6-1
