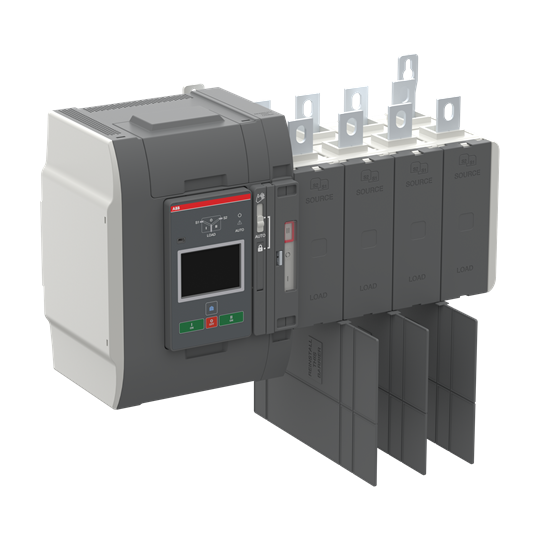

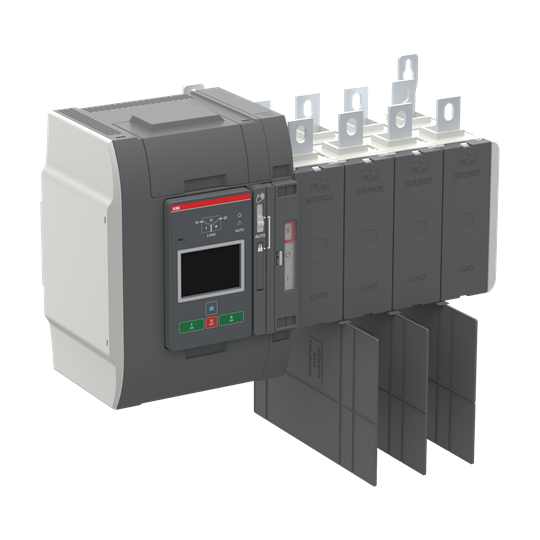

ABB OXB630E3S4QT Automatic Transfer Switch 4-P 630A 200-480VAC IP20

Product Code: OXB630E3S4QT

  • Handles up to 630 A with ease
  • Compact size: 512 mm width, 313 mm height
  • Meets IEC60947-6-1 standards
  • Operates at 200-480 VAC, 50/60 Hz
  • IP20 protection for safe use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Transfer Switch
Brand
ABB
Series
TruONE
Application
Transformer - Transformer, Transformer - Generator

Electrical

Position of Line Terminals
Supplies on Top - Load on Bottom
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
200V to 480V AC
Rated Short Time Withstand Current (Icw)
42000A
Power Loss
84W
Rated Current (In)
630A
Rated Frequency
50/60Hz
Special Functions
Open style
Transition Type
Delayed
Mechanical Life
3012 cycles
No. of Poles
4P

Mechanical

Padlockable
Padlockable to prevent automatic and manual operation

Dimensions & Physical Data

Depth
212mm
Height
313mm
Weight
21.63kg
Width
512mm

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
Operating Temperature
-25°C to 70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-6-1
