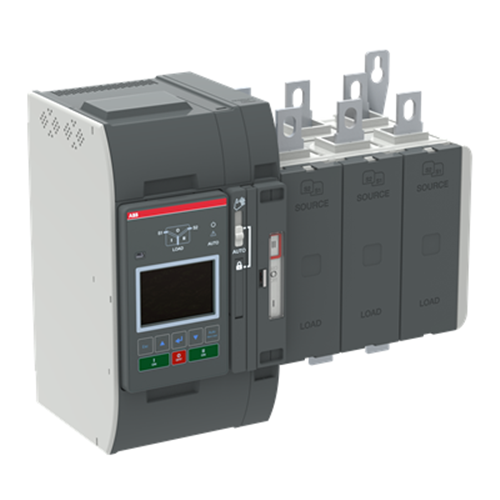

ABB OXB400E3X3QT Automatic Transfer Switch 3-P 400A 200-480VAC IP20

Product Code: OXB400E3X3QT

  • Rated current of 400 A, suitable for heavy-duty use.
  • Compact size: 390 mm width, 305 mm height.
  • Complies with IEC60947-6-1 standards.
  • Operates within 200-480 VAC voltage range.
  • Direct mounted handle for easy operation.
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Transfer Switch
Brand
ABB
Series
TruONE
Application
Transformer - Transformer, Transformer - Generator

Electrical

Position of Line Terminals
Supplies on Top - Load on Bottom
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
200V to 480V AC
Rated Short Time Withstand Current (Icw)
25000A
Power Loss
60.9W
Rated Current (In)
400A
Rated Frequency
50/60Hz
Special Functions
Open style
Transition Type
Delayed
Mechanical Life
4012 cycles
No. of Poles
3P

Mechanical

Padlockable
Padlockable to prevent automatic and manual operation

Dimensions & Physical Data

Depth
183mm
Height
305mm
Weight
15.45kg
Width
390mm

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
Operating Temperature
-25°C to 70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-6-1
