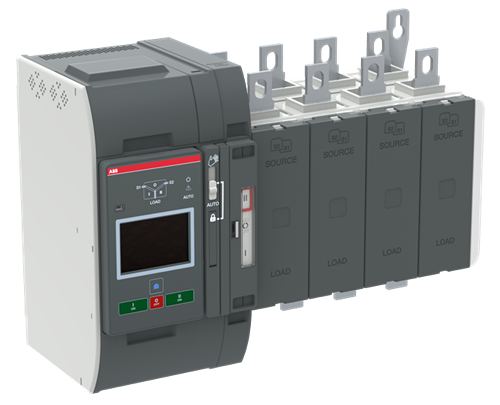

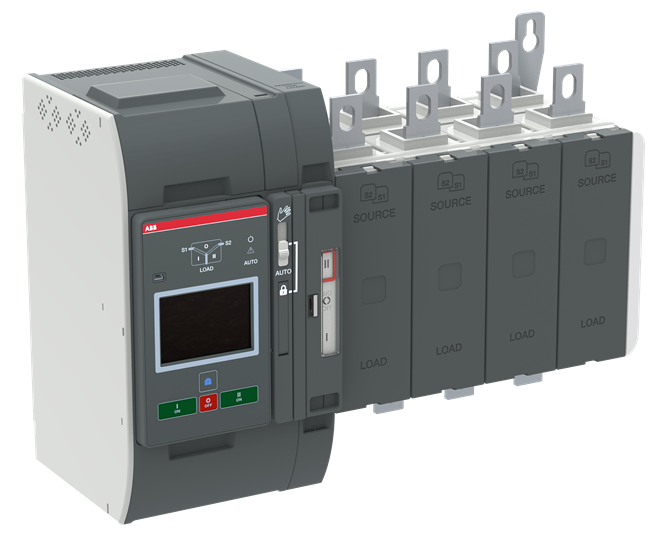

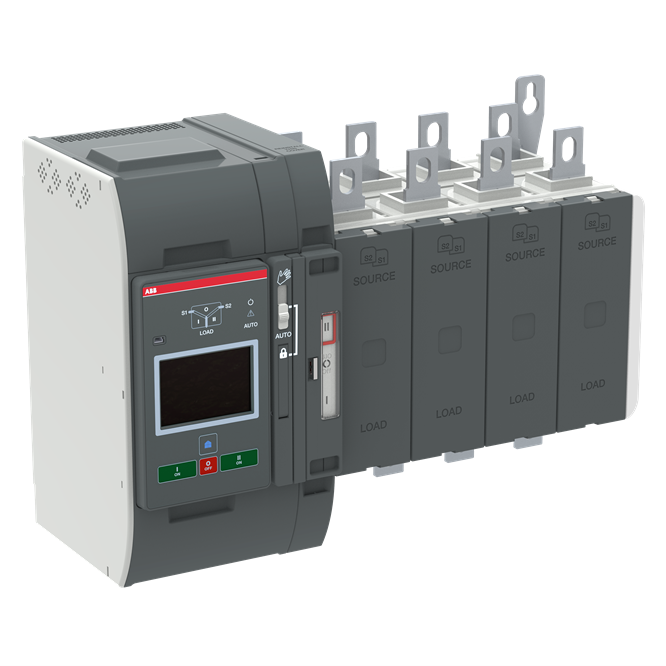

ABB OXB400E3S4QT Automatic Transfer Switch 4-P 400A 200-480VAC IP20

Product Code: OXB400E3S4QT

  • Handles 400A with ease and efficiency
  • Complies with IEC60947-6-1 standards
  • Compact size: 455mm W x 305mm H x 183mm L
  • Operates at 200-480VAC, suitable for various setups
  • IP20 protection with bolt terminal type
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Transfer Switch
Brand
ABB
Series
TruONE
Application
Transformer - Transformer, Transformer - Generator

Electrical

Position of Line Terminals
Supplies on Top - Load on Bottom
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
200V to 480V AC
Rated Short Time Withstand Current (Icw)
25000A
Power Loss
60.9W
Rated Current (In)
400A
Rated Frequency
50/60Hz
Special Functions
Open style
Transition Type
Delayed
Mechanical Life
4012 cycles
No. of Poles
4P

Mechanical

Padlockable
Padlockable to prevent automatic and manual operation

Dimensions & Physical Data

Depth
183mm
Height
305mm
Weight
17.78kg
Width
455mm

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
Operating Temperature
-25°C to 70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-6-1
