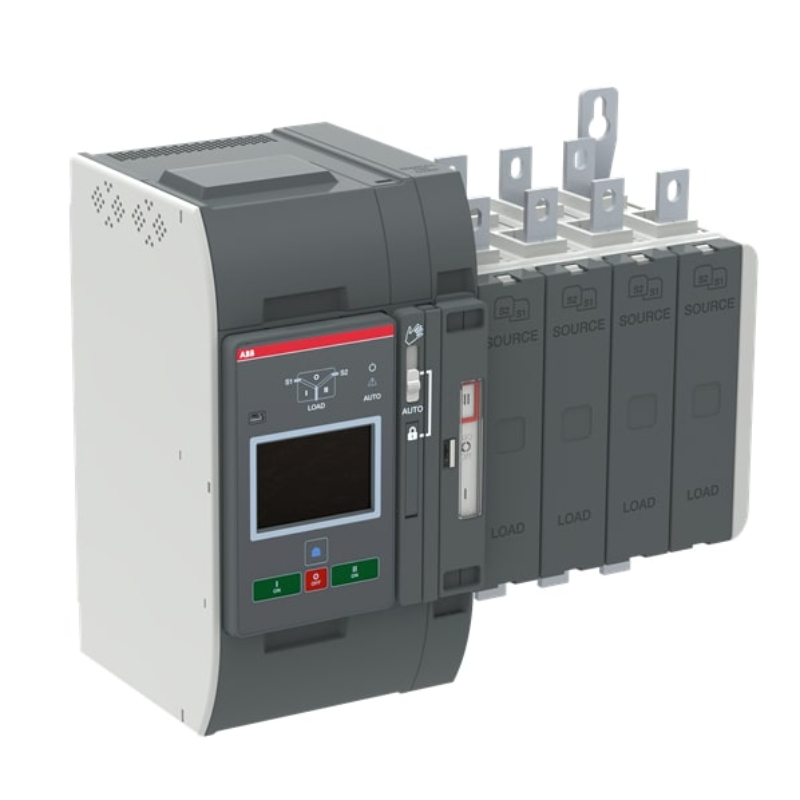

ABB OXB250E3S4QTEA Automatic Transfer Switch 4-P 250A 200-480VAC Mild Steel IP20

Product Code: OXB250E3S4QTEA

  • Rated for 250 A, 200-480 VAC
  • Complies with IEC60947-6-1 standards
  • IP20 protection, mild steel build
  • Direct mounted handle, bolt terminals
  • Delayed transition with switched-simultaneous function
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Transfer Switch
Brand
ABB
Series
TruONE
Application
Commercial buildings, telecommunications, utilities

Electrical

Max. Rated Operation AC Voltage (Ue)
480V
Position of Line Terminals
Supplies on Top - Load on Bottom
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
Main Circuit 200...480V AC
Rated Operation Power at AC-31b (Ie)
(200 … 415V AC) 250 A
Rated Operation Power at AC-32b (Ie)
(200 … 415V AC) 250 A
Rated Short Time Withstand Current (Icw)
for 0.3 s 18 kiloampere rms
Power Loss
at Rated Operating Conditions per Pole 9.7W Total 29.1W
Rated Current (In)
250A
Rated Frequency
Main Circuit 50-60Hz
Special Functions
Open style
Transition Type
Delayed
No. of Poles
4P

Dimensions & Physical Data

Depth
183mm
Height
305mm
Weight
15.8kg
Width
375mm

Environmental

Pollution Degree
3
Operating Temperature
-25°C to 70°C
IP Rating
Front IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-6-1
