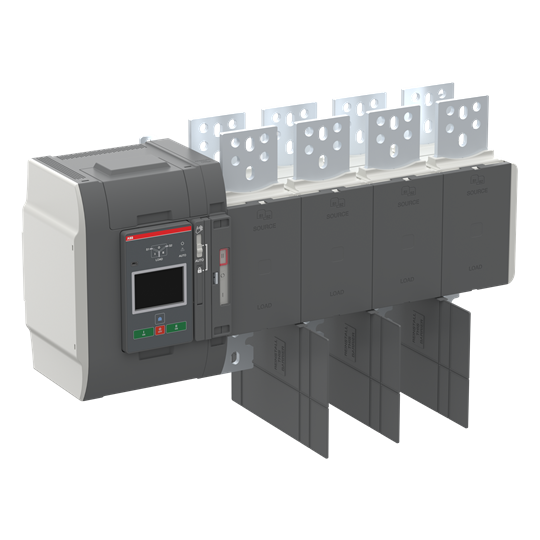

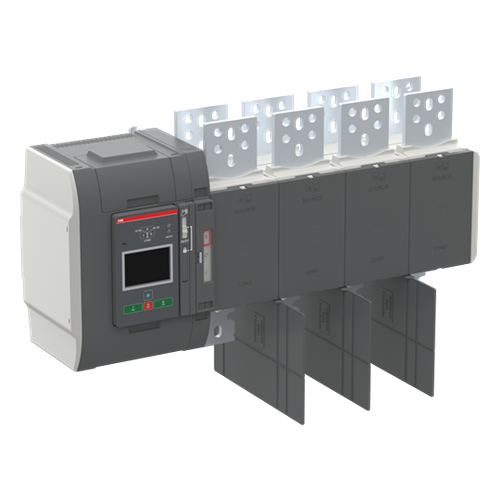

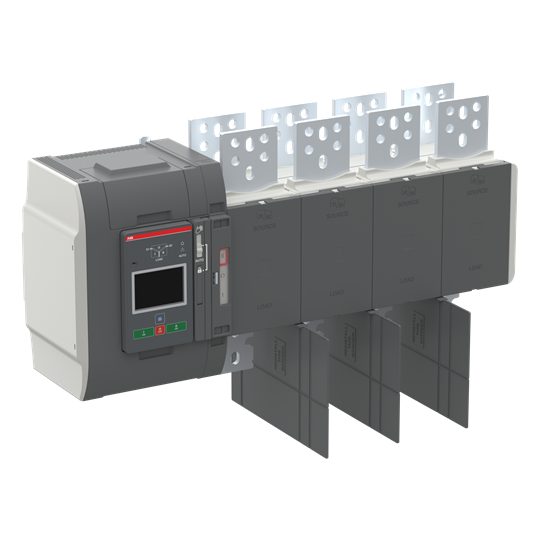

ABB OXB1600E3S4QT Automatic Transfer Switch 4-P 1600A 200-480VAC IP20

Product Code: OXB1600E3S4QT

  • Rated current of 1600 A for high power applications
  • Compact dimensions: 712mm wide, 359mm tall, 212mm long
  • Meets IEC60947-6-1 standards for reliability
  • Direct mounted handle for easy operation
  • Supports voltages from 200 to 480 VAC
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Transfer Switch
Brand
ABB
Series
TruONE
Application
Transformer - Transformer, Transformer - Generator

Electrical

Position of Line Terminals
Supplies on Top - Load on Bottom
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
200V to 480V AC
Rated Short Time Withstand Current (Icw)
65000A
Power Loss
147W
Rated Current (In)
1600A
Rated Frequency
50/60Hz
Special Functions
Open style
Transition Type
Delayed
Mechanical Life
3012 cycles
No. of Poles
4P

Mechanical

Padlockable
Padlockable to prevent automatic and manual operation

Dimensions & Physical Data

Depth
212mm
Height
359mm
Weight
37.58kg
Width
712mm

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
Operating Temperature
-25°C to 70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-6-1
