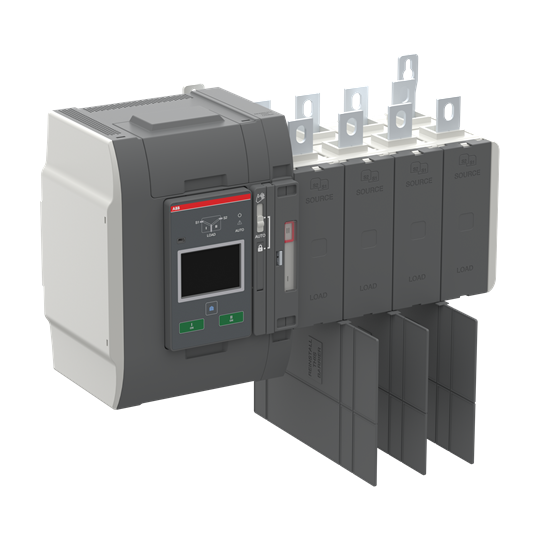

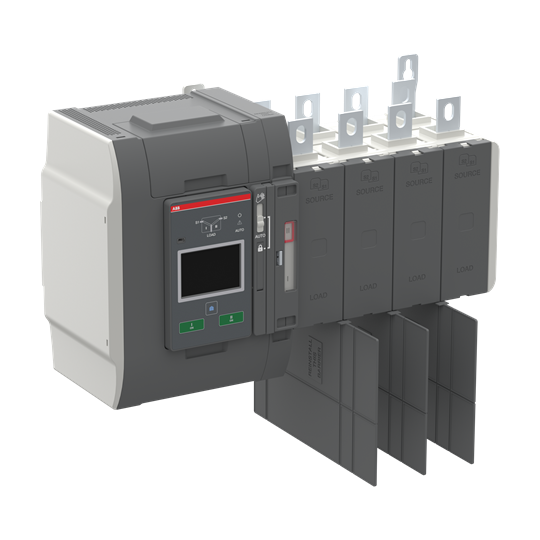

ABB OXA600U3O4QT Automatic Transfer Switch 4-P 800A 200-480VAC IP20

Product Code: OXA600U3O4QT

  • Handles up to 800 A current
  • Compatible with 200-480 VAC systems
  • Features IP20 protection rating
  • Supports 4 poles with open transition
  • Compliant with UL1008, IEC60947 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Transfer Switch
Brand
ABB
Series
TruONE
Application
Transformer - Transformer, Transformer - Generator

Electrical

Position of Line Terminals
Supplies on Top - Load on Bottom
Rated Impulse Withstand Voltage (Uimp)
12kV
Rated Insulation Voltage (Ui)
1000V
Rated Operating Voltage
200V to 480V AC
Rated Short Time Withstand Current (Icw)
42000A
Power Loss
75W
Rated Current (In)
600A
Rated Frequency
50/60Hz
Special Functions
Open style
Transition Type
Open
Mechanical Life
3050 cycles
No. of Poles
4P

Mechanical

Padlockable
Padlockable to prevent automatic and manual operation

Dimensions & Physical Data

Depth
212mm
Height
313mm
Weight
21.01kg
Width
512mm

Environmental

Rated Surrounding Temperature Without Derating
40°C
Operating Temperature
-25°C to 70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
UL 1008, IEC 60947-6-1

Documents

IPD Product Catalogue V17
